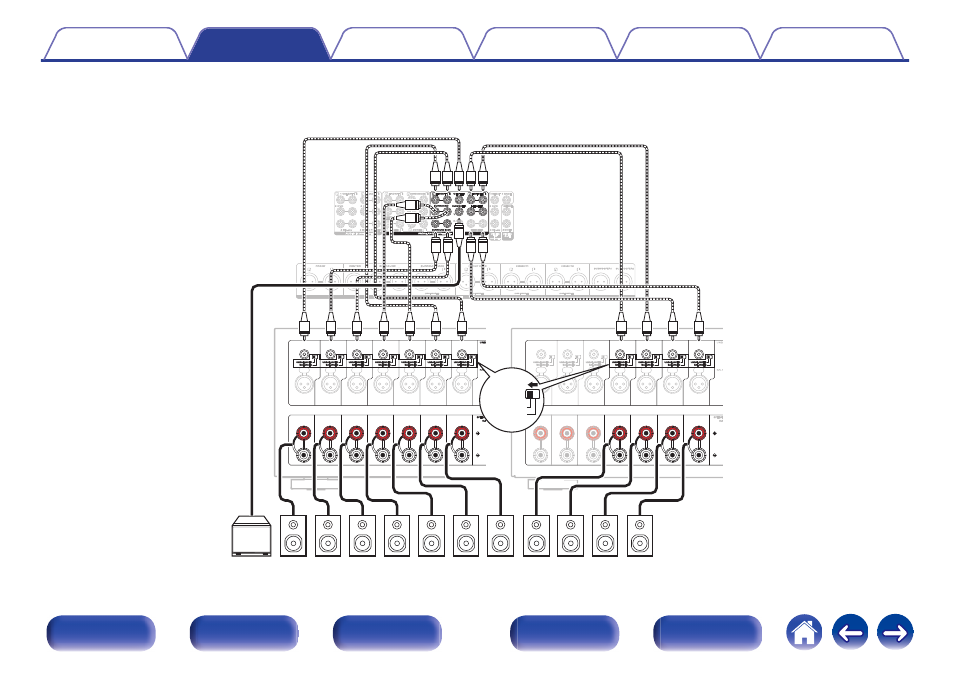

o Beispiel der Anschlüsse beim Leistungsverstärker Marantz MM8077
n Anschließen des UNBALANCED RCA PRE OUT-Anschlusses
.
CHANNEL1 (FL) CHANNEL2 (FR) CHANNEL3 (SL) CHANNEL4 (SR) CHANNEL7 (C)
CHANNEL1
(FL)
CHANNEL2
(FR)
CHANNEL3
(SL)
CHANNEL4
(SR)
CHANNEL7
(C)
CHANNEL5 (SBL) CHANNEL6 (SBR)
CHANNEL5
(SBL)
CHANNEL6
(SBR)
CHANNEL7 (C)
CHANNEL7
(C)
CHANNEL1 (FL) CHANNEL2 (FR) CHANNEL3 (SL) CHANNEL4 (SR)
CHANNEL1
(FL)
CHANNEL2
(FR)
CHANNEL3
(SL)
CHANNEL4
(SR)
CHANNEL5 (SBL) CHANNEL6 (SBR)
CHANNEL5
(SBL)
CHANNEL6
(SBR)
SW SR SL FR FL C
BALANCED BALANCED
UNBALANCED UNBALANCED
FWR FWL FHR FHL SBL SBR
【 MM8077 】
