Assembly
FGW 84 A1
GB
IE
Step 4

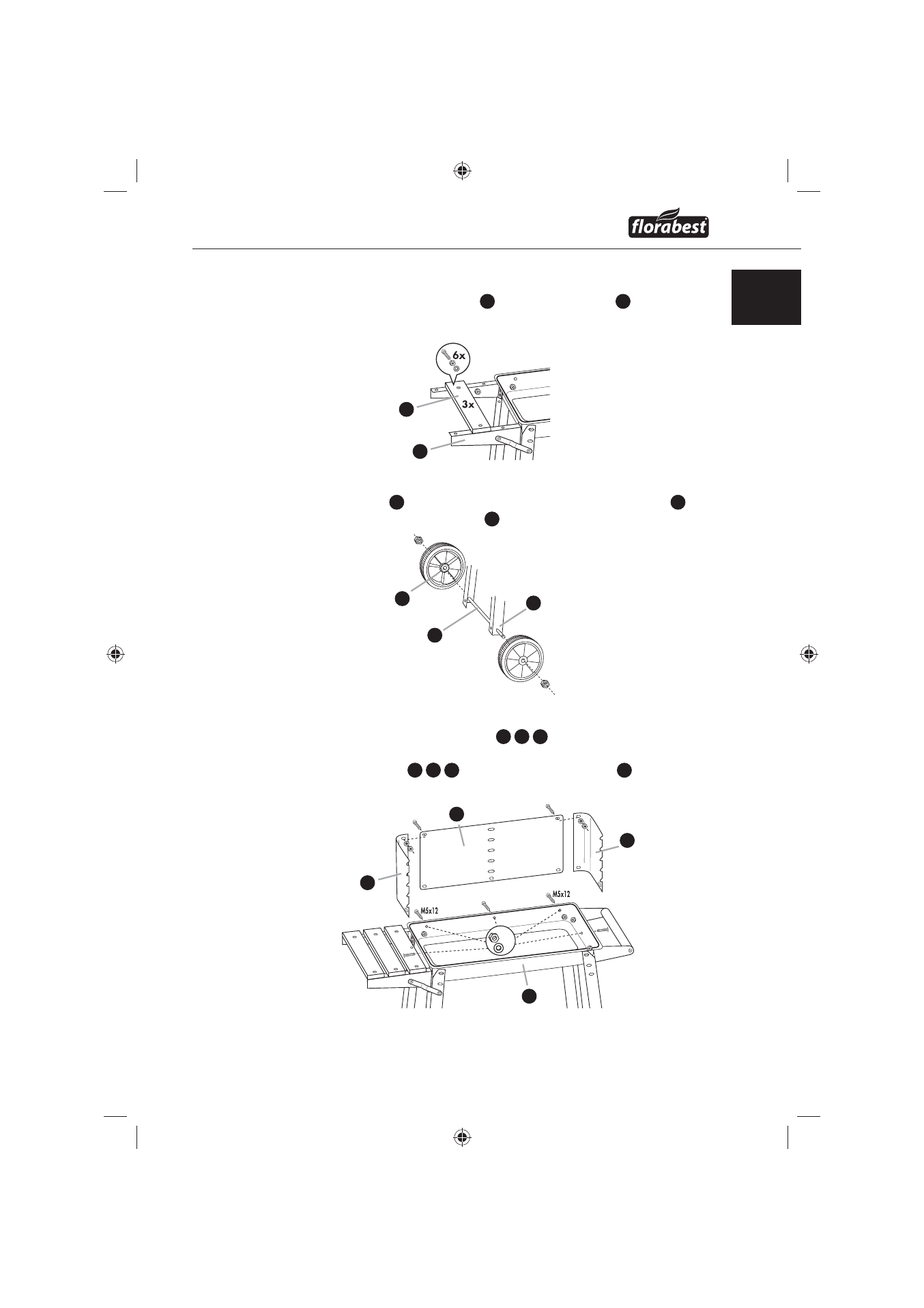

Assemble the three storage slats ♦ 17 on the storage holder 15 by means of
the washers Ø 5.4, M5x12 screws and nuts M5.
Step 5
Guide the axle ♦ 13 through the lower boreholes on the wheel braces 14
and secure the placed-on wheels 12 with the self-securing nuts M8.
Step 6
Secure the wind protector elements ♦ 2 3 4 with 2 M5x10 screws,
washers Ø 5.4 and nuts M5 (only at the top). When done, screw the wind
protector elements
2 3 4 from inside onto the fi rebowl 6 by means of
the washers Ø 5.4, 2 M5 x 12 screws, 3 M5 x 10 screws and nuts M5.
5x
17
15
12
13
14
2
3
4
6
