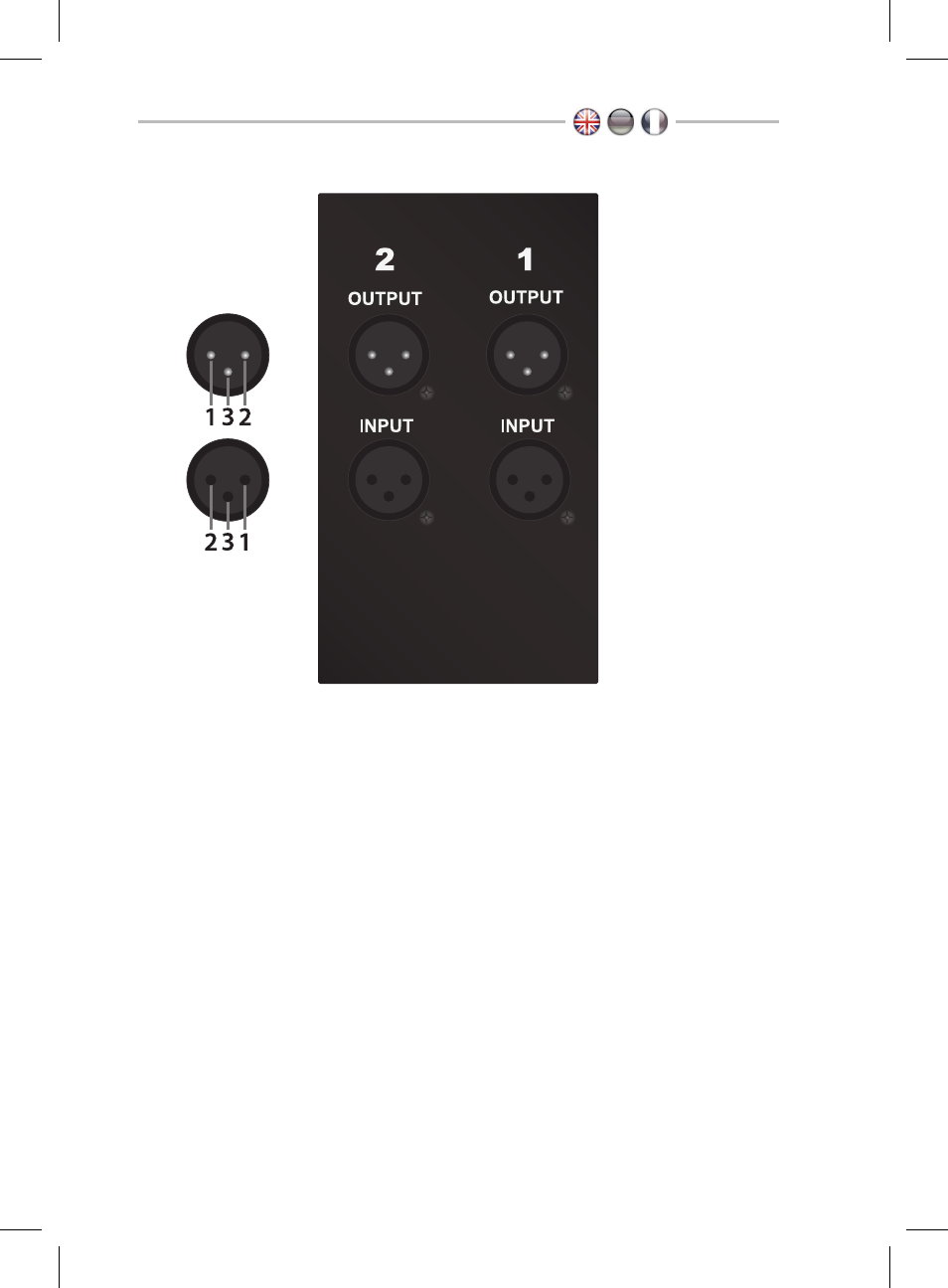

Connectors
Audio outputs (+4 dBu)
Pin assignment balanced:
1
ground
2
hot (+)
3
ground
Pin assignment unbalanced:
1
ground
2
hot (+)
3
idle
Audio inputs (+4 dBu)
Pin assignment balanced:
1
ground
2
hot (+)
3
cold (-)
Pin assignment unbalanced:
1
ground
2
hot (+)
3
ground
Mono operation:
Connect either input and output
1
or
2
–
both will work identically.
Stereo operation:
Connect both inputs and outputs
1
and
2
–
the choice which channel is left and which is right is up to you.
