An unused amplification

circuit must be terminated

with a 75 Ω resistor.

VWS 220

Terrestrial reception

system

UAS 478

UAS 474

EMU 40

digital

EXR 03

DVB-Receiver

(Set-Top-Box)

for digital reception

ESD 30

ESD 32

Mounting

Preferably wall mounted.

The air must be able to circulate

around the unit.

Mounting accessories

Wood screws, max 4 mm Ø

Connection

Screw-on connector 75

Ω

Type F acc. to EN 60169-24

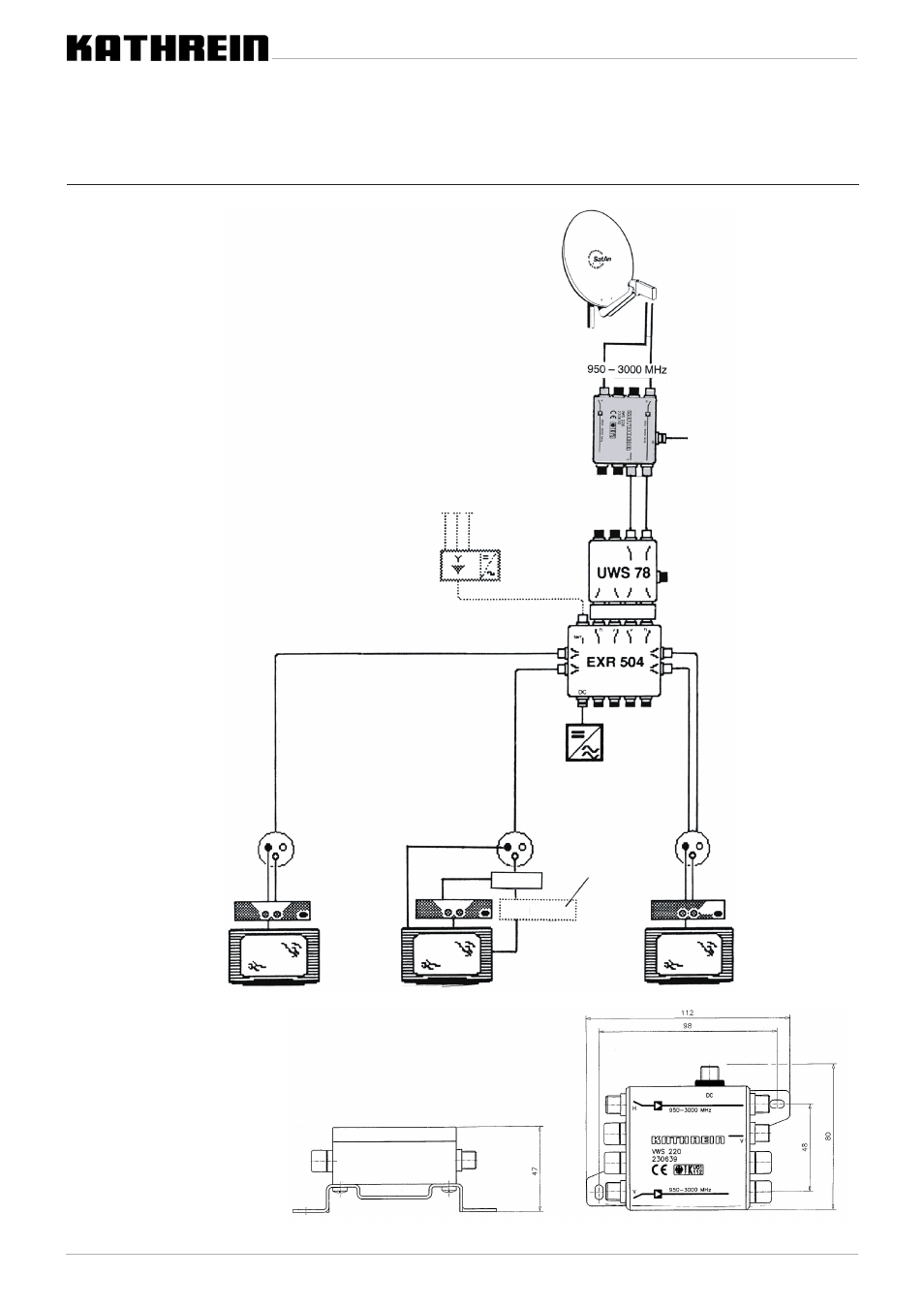

Example installation

VWS 220 used in connection with UWS 78

and switching matrix EXR 504.

Sat-IF
