Delay time:
The thermostat reacts to changes in the setting with a delay of 10 seconds. This function protects the
switching contact of the thermostat from undesired switching on/off during the setting of the
temperature by the user.
Advanced settings:
1. Insert the Terra Heat Thermostat into the wall socket
2. Press for approx. 10 seconds the up and down button together till the display shows EN
3. Press the function button till the display shows DIS. Select now with the button up function EN
and press for confirmation the function button. Now you can select cooling or heating.
4. LCD displays: F (degrees Fahrenheit) or C (degrees Celsius).
5. Let go of the pushed buttons.
6. Press the ٨ / ٧ button to select the correct scale (ºC/ºF).
7. Press the FUNCTION button to confirm this setting. Calibration will then be displayed.
8. Press the ٨ / ٧ button to make any adjustments if required. Use this function only if there is a
temperature deviation!
9. Press the FUNCTION button to confirm this setting. The controller will then be switched to its
operating setting.

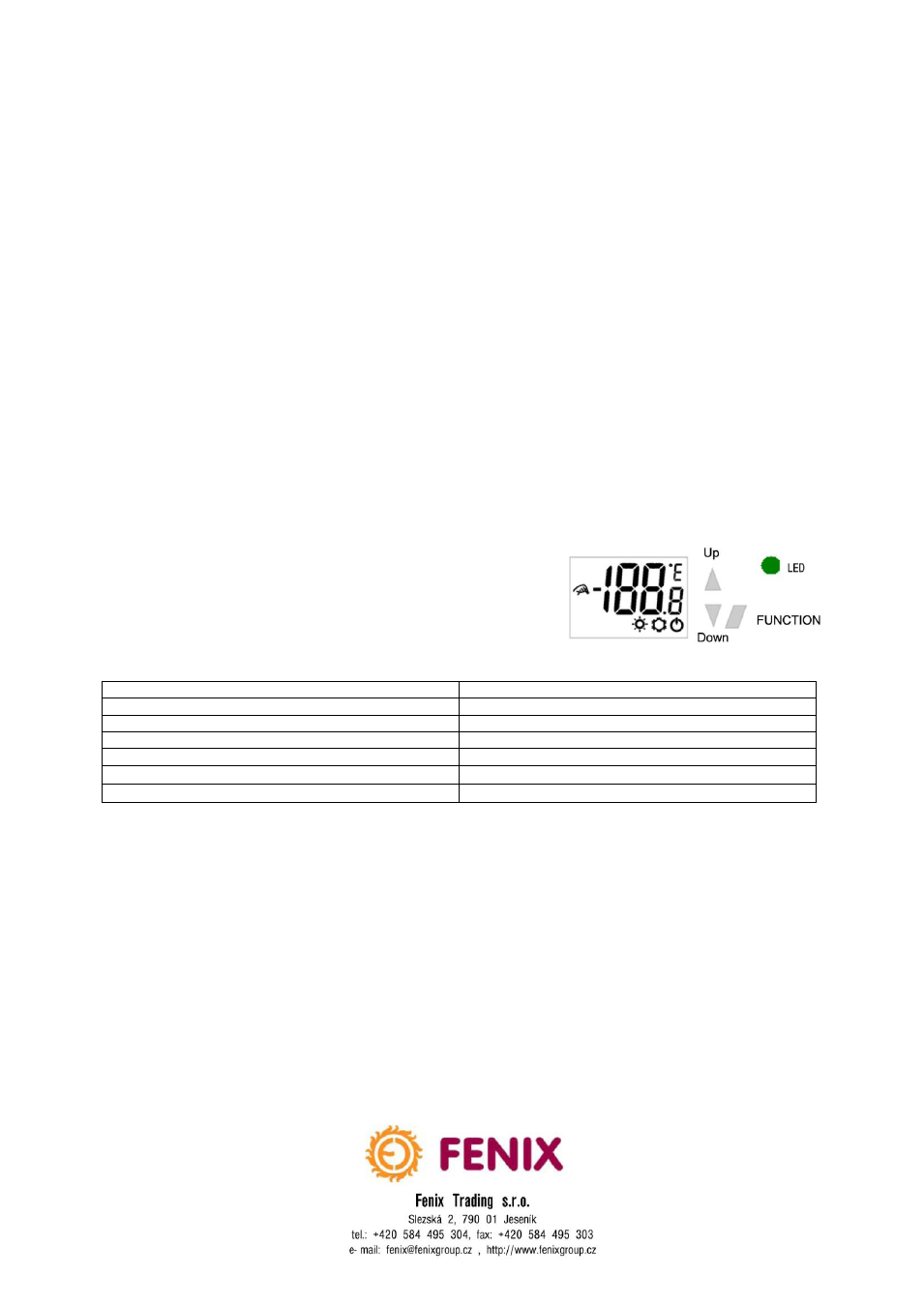

Function of the buttons:
UP and DOWN
٨ / ٧
e.g. for the setting of temperature
FUNCTION: ON/OFF, HEATING/COOLING
Technical specifications:
Warranty:
A 24-month warranty from the date of purchase is provided for this thermostat and covers flaws in
material and manufacture. The warranty consists in the exchange of faulty components free of charge.
The warranty is void if the fault is caused by a non-specialist intervention, carelessness or incorrect
use of the device. The producer is not responsible for any indirect damage which might be caused by
using this device.
Product type (production number) Date of sale:
Stamp, signature:
Model/Type: Terra Heat TC 100 thermostat Range of temperature control 5-49 ºC
Signalization of switching: the LED lights up (green) IP coverage of the thermostat: IP21
Power voltage: 230Vac (+10% / -15%) 50/60 Hz IP coverage of the probe: IP 68
Output voltage: 230Vac 50/60 Hz Frequency of temperature reading: 1x/4min
Maximum current/load: 16A/3600w at ohmic load Operating temperature: -5 - 55 ºC
Probe: removable (connector), 2m length Storage temperature: - 5 ~ 60 ºC
Temperature accuracy: +/- 1 °C (+/- 1 °F) Operating humidity: 5-95% RH non-condensing
