Assembly
FRG 45 A1
GB
CY

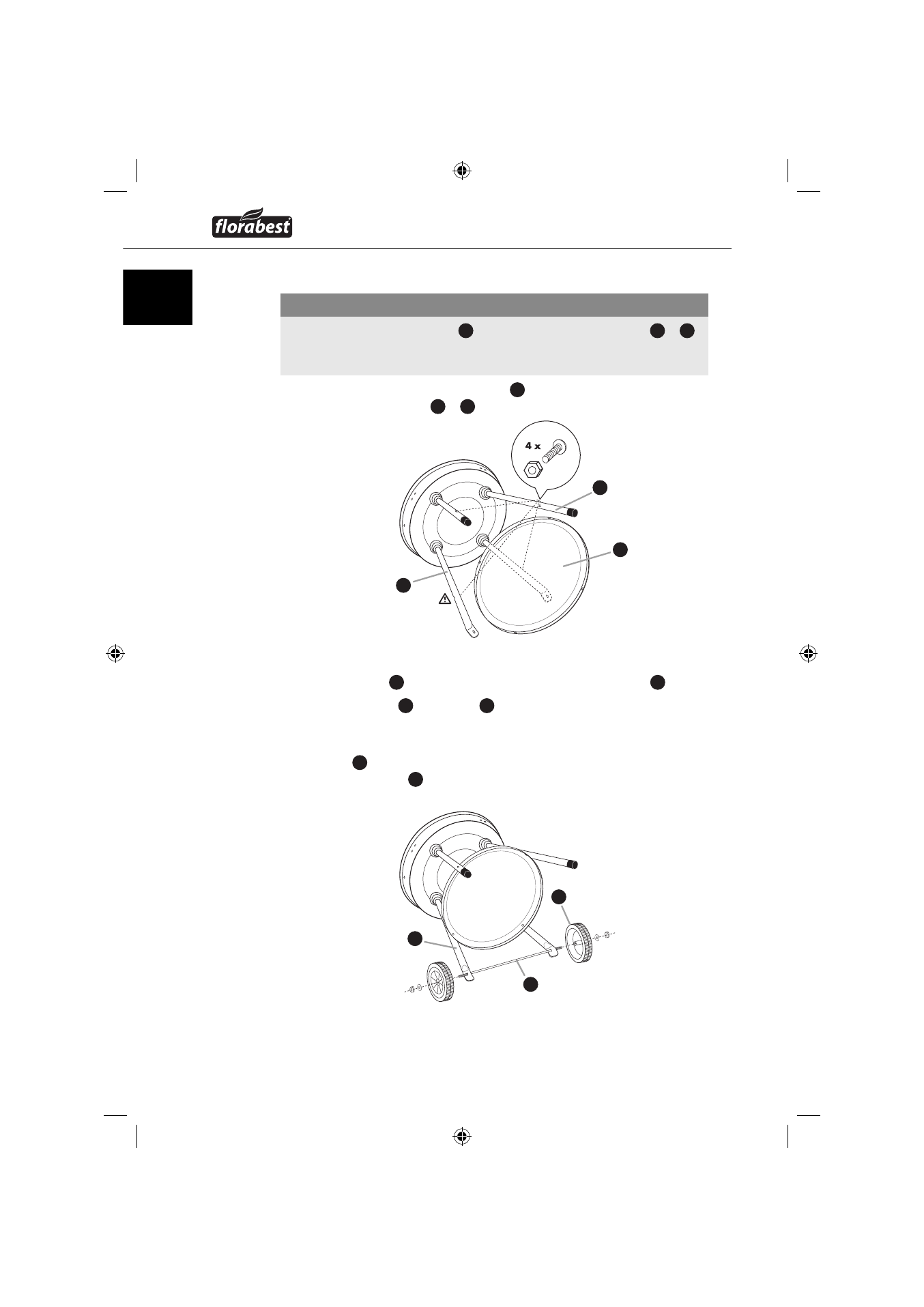

Step 2
IMPORTANT
The edge of the bottom shelf
►
6
must face downwards. The legs (
5
+
9
)
must be rotated such that the indentations of the boreholes face outwards,
thereby enabling the screwheads to be accommodated within them.
Assemble and secure the bottom shelf
♦
6
, using 4 M5 x 30 screws plus
M5 nuts, to the 4 legs (
5
+
9
).
Step 3
Guide the axle
♦
8
through the lower boreholes on the short legs
9
.
Place the wheels
♦
7
on the axle
8
and secure both of them, each with a
Ø 8 washer and an M8 self-securing nut.
Tighten the nuts with an 13 mm open-jawed spanner. If necessary, hold
♦
the axle
8
with the pliers. To prevent scratches, place a cloth between the
pliers and the axle
8
.
6
5
9
8
7
9
