Clarify
Tonearm / Tonarm
User manual / Bedienungsanleitung
Page/ Seite 8  clearaudio electronic GmbH 2014

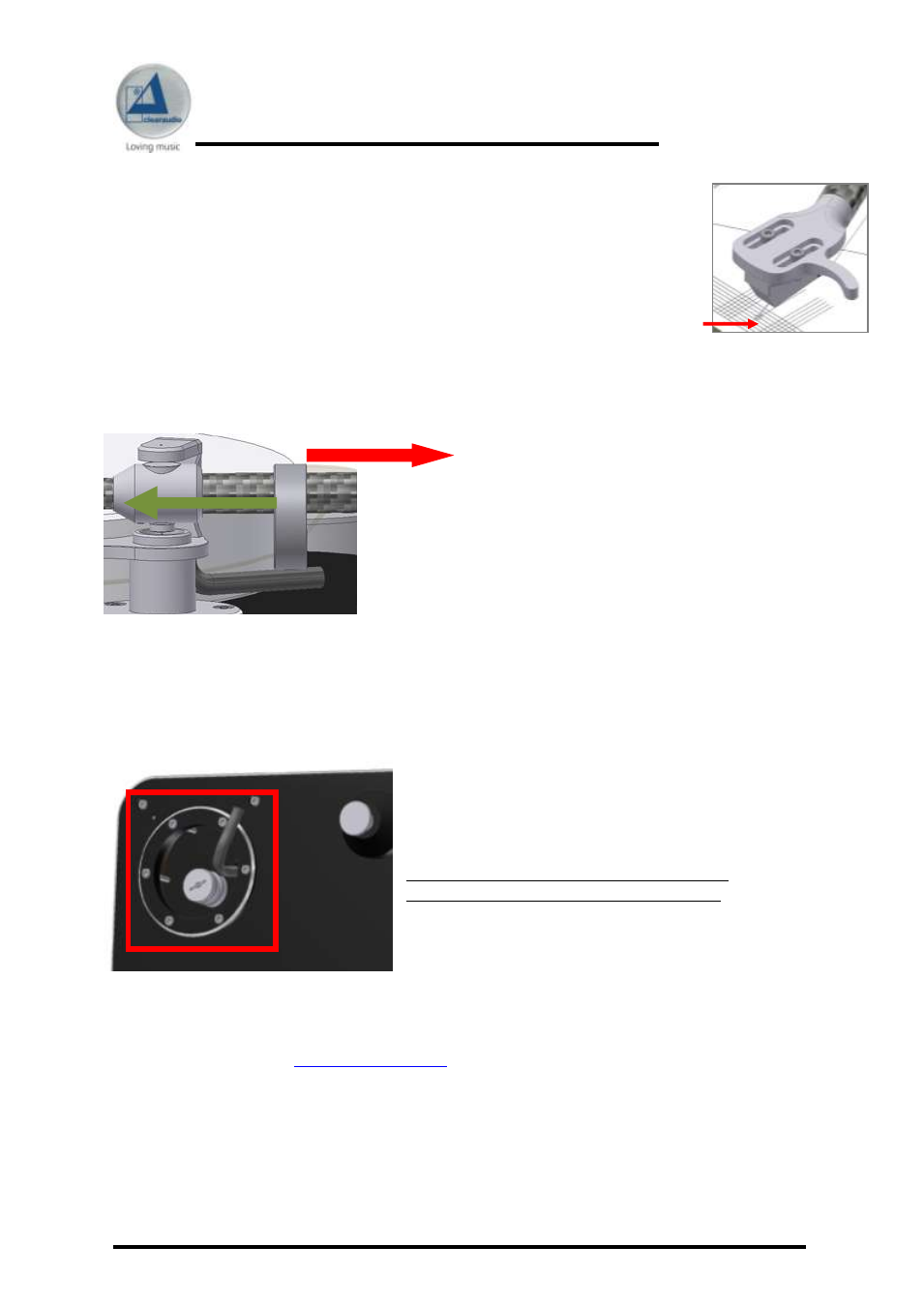

Pic 11: Stylus tip on reference point
The installation is correct when the armtube is parallel to the marked lines on
the gauge, the diamond tip is on the reference point and the leading edge of
the cartridge is parallel to the lines on the gauge. Finally lock all screws that
had been involved during the adjustments.
Now you can adjust the final tracking force according to the manufacturer`s
user manual.
2.6.5. Adjustment of the Tracking force
The small knob on the back end of the armwand is used to adjust tracking force.
red arrow (to the end of the tonearm)
= lesser tracking force -> turn the knob clockwise
green arrow (to the beginning of the tonearm)
= more tracking force -> turn the knob anti-
clockwise
2.6.6 Adjustment of the Anti-Skating
You will find the Anti – skating adjustment wheel on the bottom of the tonearm (Pic. 10).
The factory installation is preset at a tracking force of 2.4 grams and marked with a black
stripe on the bolt (viewed from below).
You can change your Anti-Skating:
Clockwise (max. 4 turns) = more Anti - Skating
Anticlockwise (max. 4 turns) = less Anti - Skating
With 3 turns = Tracking force is 2.2 grams
With 2 turn = Tracking force is 2.4 grams
For a perfect Anti-Skating adjustment we recommend the Clearaudio Test record
(LPT43039) available at www.analogshop.de or contact your nearest dealer or distributor.
Attention:
Before the first use or after a long storage, please apply the lift unit up and down
approximately 4-5 times, so that the oil inside can dissolve in order that the lift unit can
move smoothly.
The general set-up is now finished.
Now you can connect your Clarify -tonearm to the phono input of your phono-preamplifier.
Pic. 13: Adjustment of the Anti-skating
Pic. 12: Adjustment of the Tracking force
