Testing the radio
connection for
the Fronius
Personal Display
Card
2.
Position the Personal Display Card Dummy at the location where you intend to install
the inverter
3.
Connect the antenna cable plug to the antenna connection on the Personal Display
Card Dummy as shown
Testing the radio connection for the Fronius Perso-
nal Display Card
(2)
(1)
(3)

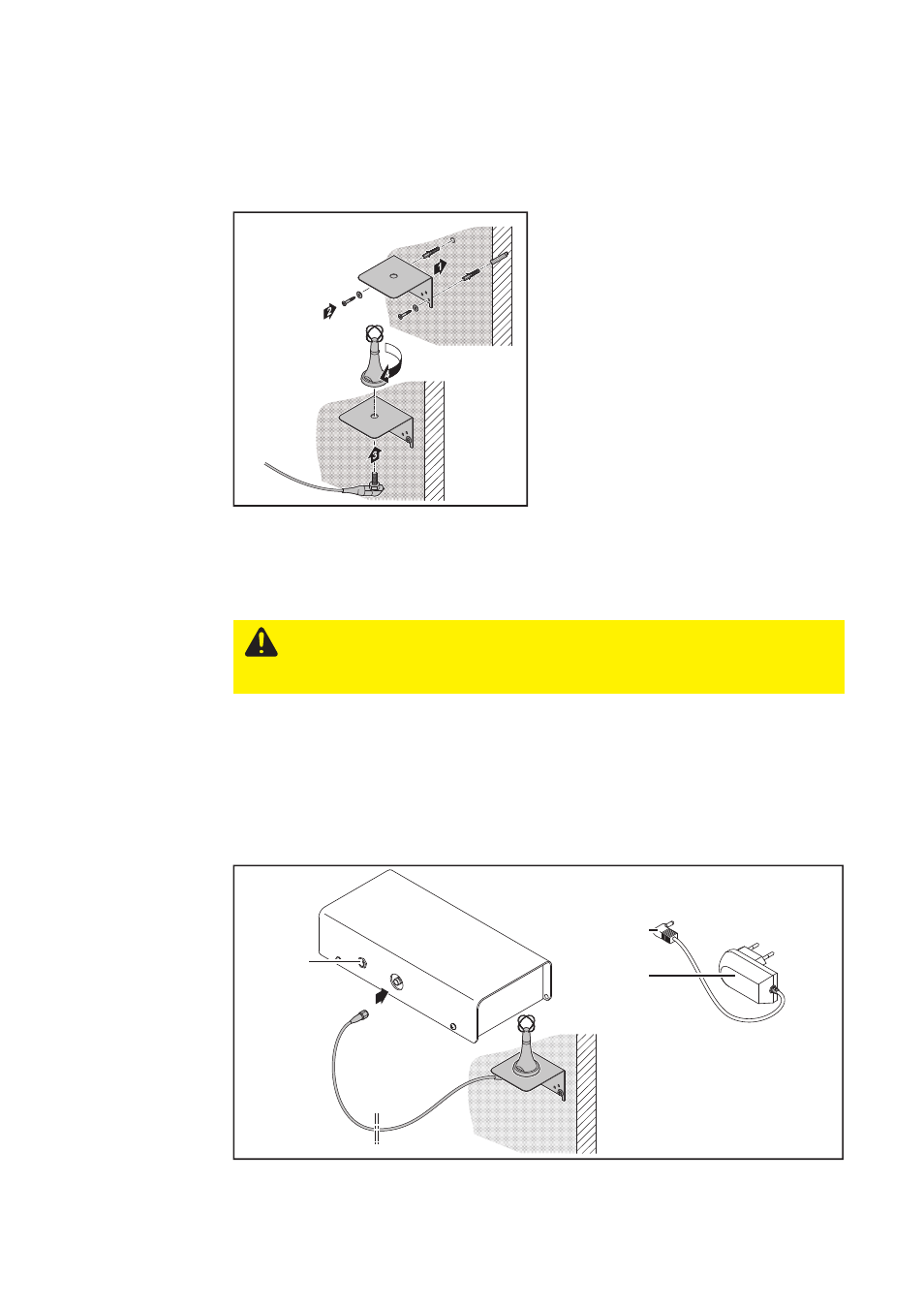

1.
Fit the antenna as shown
CAUTION! An incorrect power supply to the device can cause serious injury and
damage. Only connect the device to the mains using the power supply included
in the scope of supply.
4.
Connect the female connector of the supplied power supply (1) to the power supply
connector (2)
5.
Plug the supplied power supply (3) into the socket
6.
Position the Display at its intended installation location and add the Personal Display
Card Dummy to the Display as an inverter
Power values are simulated and sent to the Display. These are updated every 10
seconds.
Important! If the device is disconnected from the mains or the Display is reset, the device
must be added as an inverter to the Display again.
