Fronius IG Public Display - Handbuch (Seite 22)

6
Wiring and
attaching the
Public Display
Configuring the
LocalNet address
3
4
4
1
2

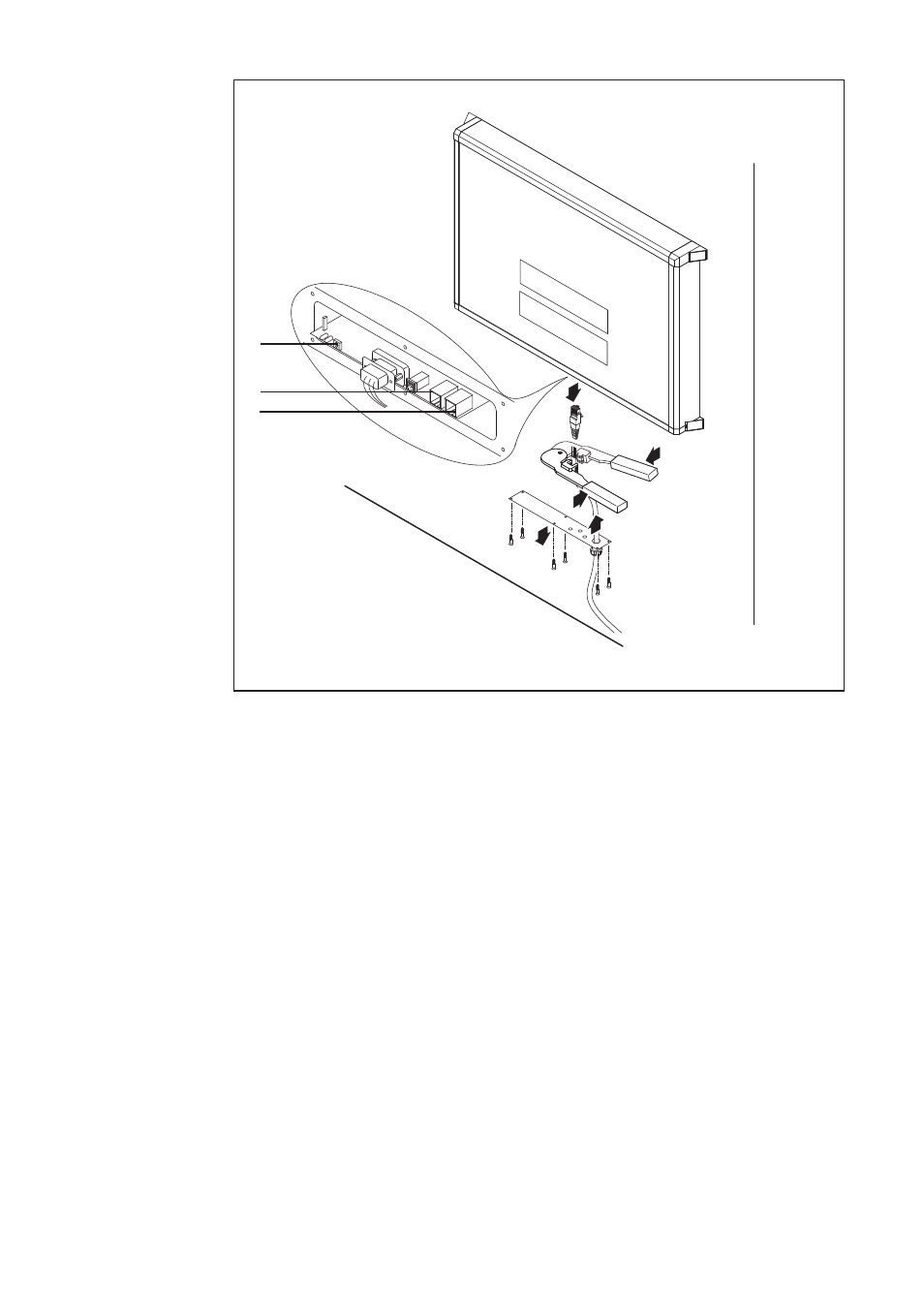

Abb. 2 Wiring and connecting the Public Display
(1)
(2)
(3)
(1) Wheel for address setting
(2) Data communication input port „IN“
(3) Data communication input port „OUT“
Important! For detailed information on wiring the system components, refer to the
operating manual „FRONIUS IG DatCom Detail“
It is possible to add up to 10 Public Displays and/or Public Display Cards/Boxes to the
system. Make sure that you assign a unique address to each Public Display.
The factory default address for the Public Display is „1“. You can change this address
using the „Wheel for address setting“.
Important! For detailed information on the addressing of system components, refer to
the operating manual „FRONIUS IG DatCom Detail“
