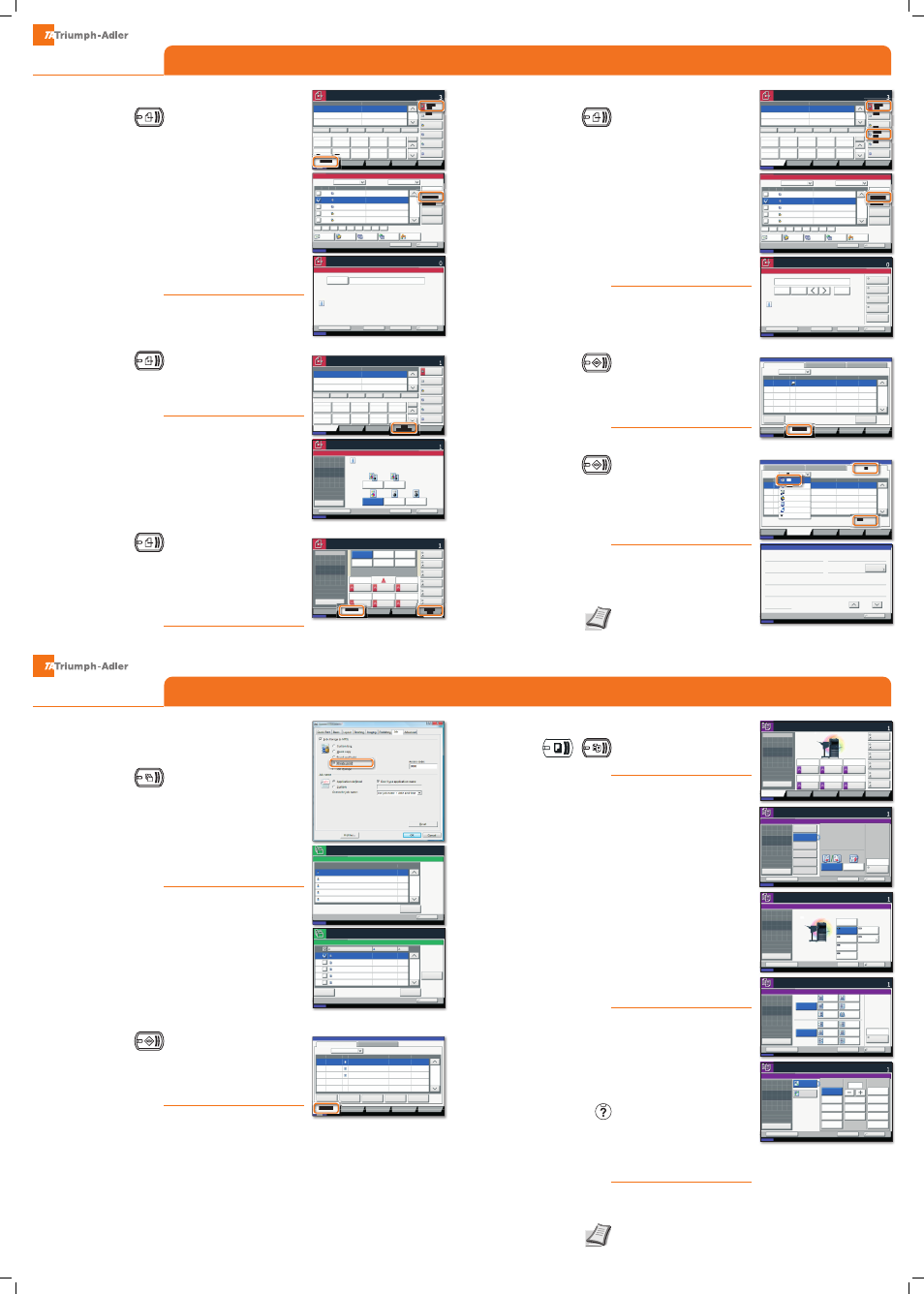

QUICKGuide
DC 2325 | DC 2430 | DC 2242/2252
QUICKGuide
DC 2325 | DC 2430 | DC 2242/2252
➊ Press SEND .
➋ Press COLOR/IMAGE QUALITY .
➌ Press ORIGINAL IMAGE .
➍ Choose the Color to be used.
➎ Confi rm with OK .
➊ Press SEND .
➋ Press QUICK SETUP .
Choose an item to be changed. After
changing confi rm with OK .
To enter a fi le name press ADVANCED
SETTINGS . Press FILE NAME ENTRY and
change the name. Confi rm with OK .
➌ Press DESTINATION to return.
Note: To activate the private printing
from the PC, select the JOB tab in the
printer driver and click PRIVATE PRINT .
The section JOBNAME allows you to
type in your name directly.
➊
Press DOCUMENT BOX .
➋ Press JOB BOX .
➌ Select the creator of the private
print job.
➍
Select the document to be printed
from the list. If the document is
password protected, type in the PIN
with the TEN PAD keys.
➎ Press PRINT to start printing.
Note: By pressing DELETE jobs can be
cancelled.
➊ Place the originals on the platen or
in the optional document processor.
➋
Press COPY .
➌ Enter the number of copies with
the TEN PAD keys.
Duplex
Press DUPLEX button on the touch
screen and select the desired
function.
Changing paper source
Press PAPER SELECTION . Choose the
desired paper format. When using
special sizes select the MP tray. Con-
fi rm your selection with OK button.
Finishing (optional)
Press STAPLE/(PUNCH) . Choose the
desired fi nishing method.
Reducing/Enlarging (Zoom)
Press ZOOM . Select the original
format and the target format or
choose the zoom factor.
All of above optional settings have to
be confi rmed with OK button.
➍ Press START button and the copy
starts.
➊ Press STATUS/JOB CANCEL .
➋ Press PRINTING JOBS .
➌ Choose the job to be cancelled and
press CANCEL .
➍ Confi rm with YES .
Job is cancelled.
➊ Place the originals on the platen or
in the optional document processor.
➋
Press SEND/FAX .
➌ Enter the destination address.
From the address book:
Press ADDRESS BOOK . Press the check-
box to select the desired destination
from the list. Press SEARCH (NAME) to
fi nd the destination. Enter the name
you search for. Confi rm with OK .
You may choose multiple
destinations.
Enter the destination:
Press FAX. NO. ENTRY . Enter the fax
number with the TEN PAD keys. After
that press OK .
If you want to send the fax to several
destinations, go back to step 3.
➍
To send the fax press START .
➊ Press STATUS/JOB CANCEL .
➋ Press SENDING JOBS .
➌ Choose the job to be cancelled and
press CANCEL .
➍ Confi rm with YES .
Communication is cancelled.
➊ Press STATUS/JOB CANCEL .
➋ Press SENDING JOBS .
➌ Under Job Type, select FAX .
➍ Press LOG .
➎ Select a job to be checked.
➏ Press DETAIL .
The details are displayed.
Sending
a fax
Cancelling
fax job
Check
transmission
result
Scan
settings
Private printing Preparation
Optional settings
Help
Cancel print job
E-Mail operation
Print operation
Fax operation
Copy operation
Further
settings
For more details refer to the
Operation Guide on the co-packed
CD-ROM.
For more details refer to the Operation
Guide on the co-packed CD-ROM.
A Help key is provided on this
machine‘s operation panel. If you
need further information about how
to operate the machine and how to
use its functions or if the machine is
not working properly, press the Help
key to view a detailed explanation on
the touch panel.
➊ Place the originals on the platen or
in the optional document processor.
➋
Press SEND .
➌ Enter the destination address.
From the address book:
Press ADDRESS BOOK . Press the check-
box to select the desired destination
from the list. Press SEARCH (NAME) to
fi nd the destination. Enter the name
you search for. Confi rm with OK .
You may choose multiple
destinations.
Enter an e-mail address:
Press E-MAIL ADDR. ENTRY and E-MAIL
ADDRESS . Enter the E-Mail address on
the touch screen. After that press OK .
If you want to send the e-mail to
several destinations, go back to step
3.
➍
To send the e-mail press START .
Sending
Status 08/08/2009 10:10
Original/Sending Data Format Quick Setup Destination Color/ Image Quality Advanced Setup
Destination Detail
A OFFICE 1234567890
Address
Book
Folder Path Entry
E-mail Addr Entry
No.
1/100
AAA BBB CCC DDD EEE
FFF GGG HHH III JJJ
0004 0003 0005 0001 0002
0006 0007 0008 0009 0010
1/1
i-FAX Addr Entry
FAX No. Entry
WSD Scan
Place original.
Ready to send. Destination
Direct Delete Recall On Hook Chain Detail/Edit
Black & White Grayscale
Color Selection
Full Color
Select scanning color. Select [Auto Color] to automatically send color originals in full color and black & white originals in black & white.
Cancel OK Add Shortcut
Status 08/08/2009 10:10
Preview
Original
Zoom
Paper
100%
---
:
:
: ---
Place original.
Place original.
Ready to send. Destination
Auto Color
(Color/B & W)
Auto Color
(Color/Gray)
08/08/2009 10:10
Destination
Status
Destination Quick Setup Original/Sending Data Format Color/ Image Quality Advanced Setup
Shortcut 1
Shortcut 2
Shortcut 3
Shortcut 4
Shortcut 5
Shortcut 6
Ready to send.
Sending Image
Place original.
Preview
Original
Zoom
Send :
:
: 100%
--- ---
Density
PDF
2-sided/Book Original Density
600x600dpi
FAX TX
Resolution
Zoom Scan
Resolution
100%
1-sided Auto
600x600dpi 400x400dpi
Ultra Fine
300x300dpi
200x400dpi Super Fine 200x200dpi Fine 200x100dpi Normal
Status 08/08/2009 10:10
Original/Sending Data Format Quick Setup Destination Color/ Image Quality Advanced Setup
Destination Detail
A OFFICE 1234567890
Address
Book
Folder Path Entry
E-mail Addr Entry
No.
1/100
AAA BBB CCC DDD EEE
FFF GGG HHH III JJJ
0004 0003 0005 0001 0002
0006 0007 0008 0009 0010
1/1
i-FAX Addr Entry
FAX No. Entry
WSD Scan
Place original.
Ready to send. Destination
B OFFICE 1234568907
C OFFICE 1234569078
Direct Delete Recall On Hook Chain Detail/Edit
Status 08/08/2009 10:10
Address Book
Cancel OK
Group E-mail
Dest.
Search(Name)
Search(No.)
No. Type Name Detail
Folder
Detail
Address Book Sort Addr Book
0001
0002
0005
0004
0003
ABCD [email protected]
TUVW [email protected]
Group1
Group2
Group3
Name
Register/Edit Address Book
1/2
i-FAX FAX
ABC DEF JKL MNO PQRS TUV WXYZ GHI 0-9
08/08/2009 10:10
Cancel OK Next Dest.
Pause
FAX No. Entry
Sub Address
Transmission Start Speed
ECM
Encrypted Transmission
On Hook
Backspace Space
Add a new FAX destination. Enter FAX number with the numeric keys.
Add to Addr Book
Ready to send. Destination
Status
Log
[email protected] 438 14:47
1/1
08/08/2009 10:10 Status
Printing Jobs Sending Jobs Storing Jobs Device/ Communication Paper/Supplies
Detail
InProcess
Status User Name Job Name Type Accepted Time Job No.
Cancel
Job Type All
Status
Status
Scheduled Job
Log
[email protected] 438 14:47
1/1
08/08/2009 10:10 Status
Printing Jobs Sending Jobs Storing Jobs Device/ Communication Paper/Supplies
Detail
InProcess
Result User Name Destination Job No.
Job Type All
Status
Status
Scheduled Job
FAX
i-FAX
E-mail
Folder
Application
Multi Sending
Detail Job No.:
Close
Job No.: Status:
Job Type:
User Name:
Job Name:
Accepted Time:
1/2
Printing Job - Copy
000091
ABCDE
Processing
doc20070404135151
10:10:10
000091
Copies: Change
Status 08/08/2009 10:10
Close
Private Print/Stored Job
1/2
Open
User Name Files
Status 08/08/2009 10:10
Job Box.
5
2
1
1
1
User
User
User
User
User
1
2
3
4
5
1/1
Detail
Close
User:
File
File
File
File
File
Print Delete
10/10/2008 09:40
10/10/2008 09:45
10/10/2008 09:50
10/10/2008 09:55
10/10/2008 10:00
File Name Date and Time Size
MB 30
MB 21
MB 21
MB 36
MB 30
Status 08/08/2009 10:10
Job Box.
1
2
3
4
5
08/08/2009 10:10
doc20070506142153 InProcess 000001
doc20070506142210 Waiting 000002
AAAAA
AAAAA
Pause All Print Jobs Cancel Priority Override Move Up
Status
Status
Status Log
Job Type All
Job No. End Date Type Job Name User Name Result
1/1
Detail
Paper/Supplies Device/ Communication Storing Jobs Sending Jobs Printing Jobs
10/10 09:10
10/10 09:15
000003 10/10 09:20 doc20070506142527 Waiting BBBBB
Status 08/08/2009 10:10
Ready to copy. Copies
Cancel OK
Duplex
Add Shortcut
Book >>2-sided
1-sided >>2-sided
Original Orientation
1-sided >>1-sided
2-sided >>2-sided
Finishing
Binding Left/Right Binding Top
2-sided >>1-sided
Book >>1-sided
Original
Zoom
Paper :
:
: ---
--- 100%
Preview
Place original.
Top Edge Top
Status 10/10/2008 10:10
Cancel OK
Paper Selection
Auto
MP Tray Setting
A4 Plain
A4
Plain
A3
Plain
A4 Plain
Plain A4
Preview
Add Shortcut
Ready to copy. Copies
Place original.
Original
Zoom
Paper
100% ---
:
:
: ---
Staple/Punch
Top Right
Staple Top Left 2 staples Top
2 staples Right
Ready to copy. Copies
Status 08/08/2009 10:10
Cancel OK Add Shortcut
Preview
Original
Zoom
Paper 100%
--- :
:
: ---
Place original.
Top Edge Top
Original Orientation
Punch
Off
Off
Bind and Fold 2 staples Left
2 holes Top
2 holes Left 3 holes Left
3 holes Top
3 holes Right 2 holes Right
Status 08/08/2009 10:10
Cancel OK
Zoom
Place original.
Add Shortcut
(25 - 400) Standard Zoom
XY Zoom
129%
400%
100%
Auto
200%
121%
154%
# Keys
50%
78%
77%
25%
64%
Letter >>Ledger
Max.
STMT >>Ledger
Legal >>Ledger
STMT >>Legal
Legal
>>Letter
Ledger
>>Legal
Min.
Ledger >>Letter
Ready to copy. Copies
%
Preview
400
Original
Zoom
Paper :
:
: ---
---
400% Ledger >>STMT
Status 08/08/2009 10:10
Original/Sending Data Format Quick Setup Destination Color/ Image Quality Advanced Setup
Destination Detail
A OFFICE 1234567890
Address
Book
Folder Path Entry
E-mail Addr Entry
No.
1/100
AAA BBB CCC DDD EEE
FFF GGG HHH III JJJ
0004 0003 0005 0001 0002
0006 0007 0008 0009 0010
1/1
i-FAX Addr Entry
FAX No. Entry
WSD Scan
Place original.
Ready to send. Destination
B OFFICE 1234568907
C OFFICE 1234569078
Direct Delete Recall On Hook Chain Detail/Edit
Status 08/08/2009 10:10
Address Book
Cancel OK
Group E-mail
Dest.
Search(Name)
Search(No.)
No. Type Name Detail
Folder
Detail
Address Book Sort Addr Book
0001
0002
0005
0004
0003
ABCD [email protected]
TUVW [email protected]
Group1
Group2
Group3
Name
Register/Edit
Address Book
1/2
i-FAX FAX
ABC DEF JKL MNO PQRS TUV WXYZ GHI 0-9
E-mail Address
Add a new e-mail destination. Press [E-mail Address], then enter the address using the keyboard screen.
Status 08/08/2009 10:10
E-mail Address Entry
Place original.
Ready to send. Destination
Cancel OK Next Dest. Add to Addr Book
Copy Image
Preview
Ready to copy. Copies
Image Quality Org./Paper/ Finishing Quick Setup Layout/Edit Advanced Setup
Status 08/08/2009 10:10
Shortcut 1
Shortcut 4
Shortcut 3
Shortcut 2
Shortcut 6
Shortcut 5 Original
Zoom
Paper 100%
--- :
:
: ---
Staple
Off 2 in 1
Combine
2-sided
>>2-sided
Duplex
Normal 0
Density Paper
Selection
Auto
Zoom
100%
Place original.
