Installation Manual - Solar-Log™ RS485 Wireless Package
2�5 Diagnostic Function
There is a special Diagnostic Configuration to test the wireless range
and to determine the ideal mounting location for the modules/antennas. Connect one of the modules with
the Solar-Log™ radio cable to
the desired RS485 output on the Solar-Log™ to use the diagnostic function.
Note !
The RS485 interface that is to be tested
has to be configured in the Solar-Log™'s WEB menu under Configuration | Devices
| Definition. That means the inverter manufacturer also has to be selected to acti-
vate the Wireless Package.
After that, it is automatically ready for operation.
The second module has to be placed in the Diagnostic Configuration mode:
1. Plug in the red diagnostic connector.

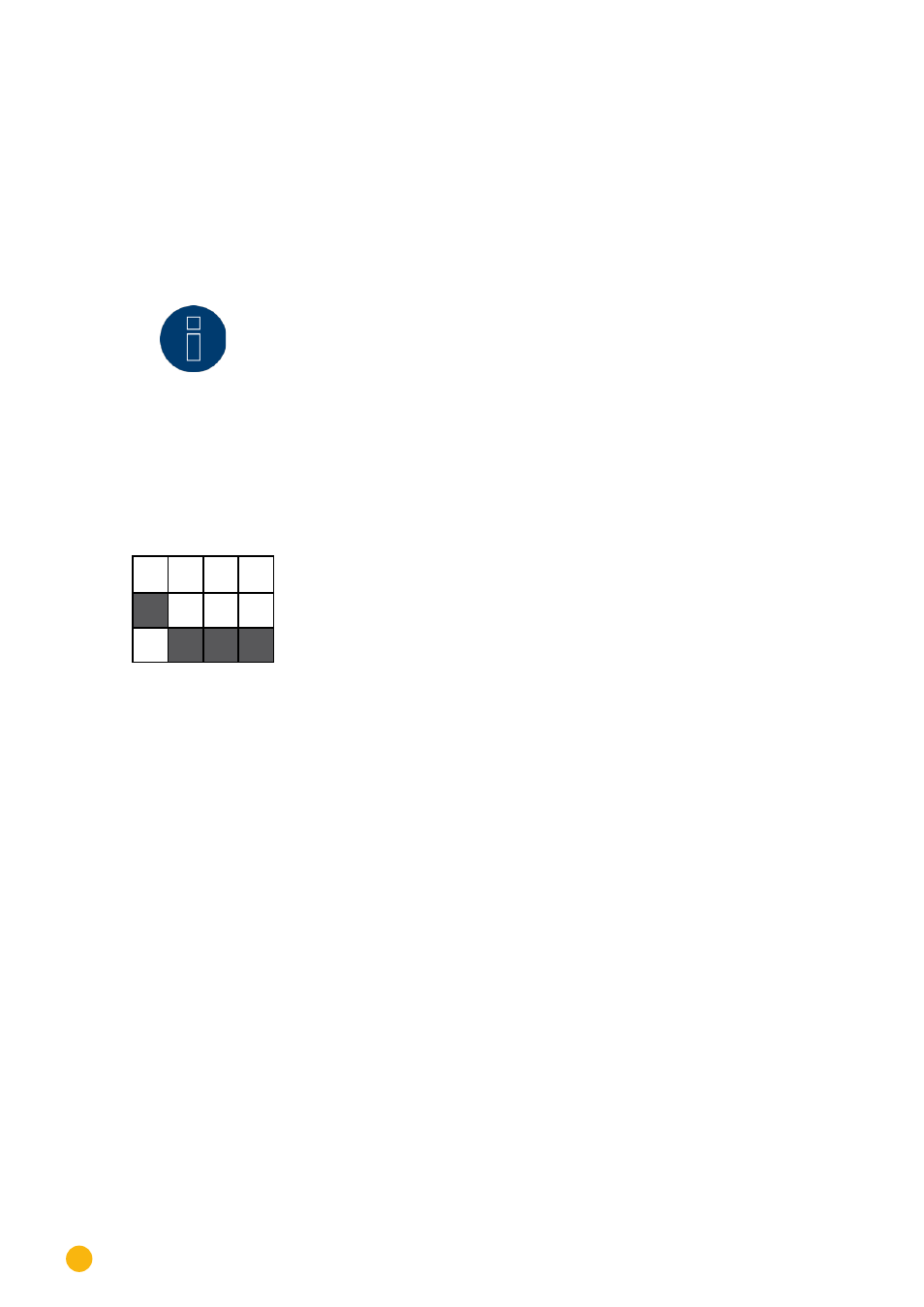

2. Set the DIP switches to diagnostics.
1 2 3 4
3. Connect a nine-volt battery to the power adapter that was supplied and then plug that into the
Wireless module. (see illustration)
Fig.: Wireless module with diagnostic connector and “mobile” nine-volt power supply
Now the second Wireless module is operational and is transmitting all of the data
it receives back immediately.
