MD-spelare eller
kassettbandspelare
CD-eller Super
Audio CD-spelare*

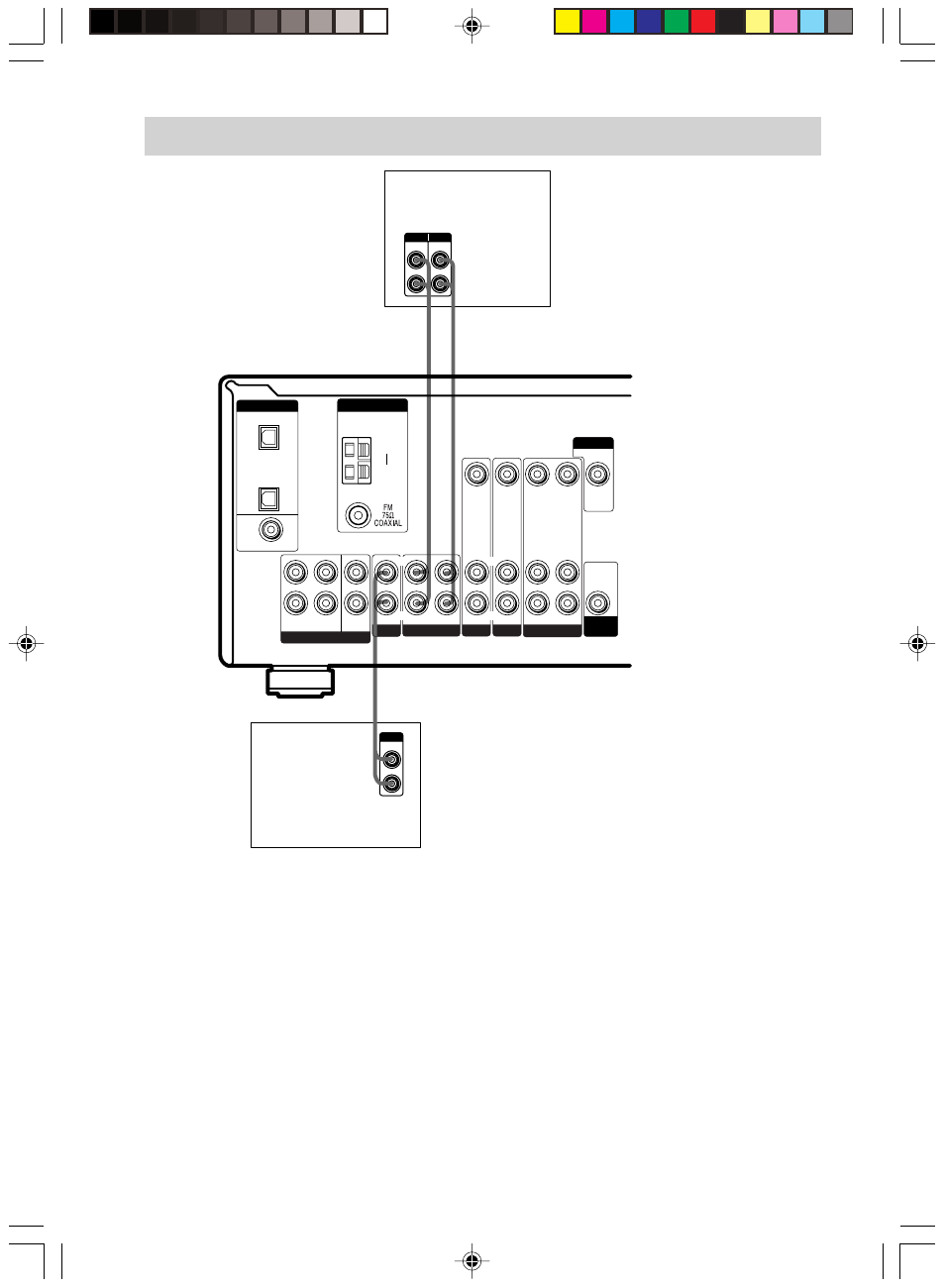

Anslutning av ljudkomponenter
LINE
L
R
OUTPUT
A
IN
OUT
LINE
L
R
LINE
INPUT OUTPUT
з
з
A
A
L
R
L
R
L
R
L
R
L
R
y
AM
DIGITAL
ANTENNA
MONITOR
SUB
WOOFER
VIDEO 1
VIDEO 2
DVD
MD/TAPE
CD/SACD
MULTI CH IN
OPTICAL
VIDEO 2
IN
CD/
SACD
IN
DVD IN
COAXIAL
FRONT SURROUND
SUB
WOOFER
CENTER
IN
OUT
IN
AUDIO IN
AUDIO IN
AUDIO OUT
AUDIO IN
VIDEO IN
VIDEO IN
VIDEO OUT
VIDEO IN
VIDEO OUT
AUDIO
OUT
* Gäller endast STR-DE595.
