INSTALLATION (cont.)
Step 1 /
6
Feed the speaker cable through
the middle opening and line the
mounting bracket up horizontally
or vertically, using a spirit level.
Now mark the position of the screws
in the slots with a pencil (see Figs
4 + 5).
Step 2 /
6
a) Installation on a cavity wall:
continue with Step 3
b) Installation on a concrete wall:
Pre-drill holes for the rawlplugs
at the marked positions with:
Ø = 6 mm
L = 40 mm
- Insert rawlplugs (6 x 30)
Step 3 /
6
- Pull the speaker cable through
the middle opening
- Screw the mounting bracket
firmly into position using
washers and stainless steel
screws (4 x 40 mm) Torx TX20
Step 4 /
6
Guide the speaker into the
bracket, as shown in Figure 6 and
fix it in place, by turning the two
rotary knobs on both sides.

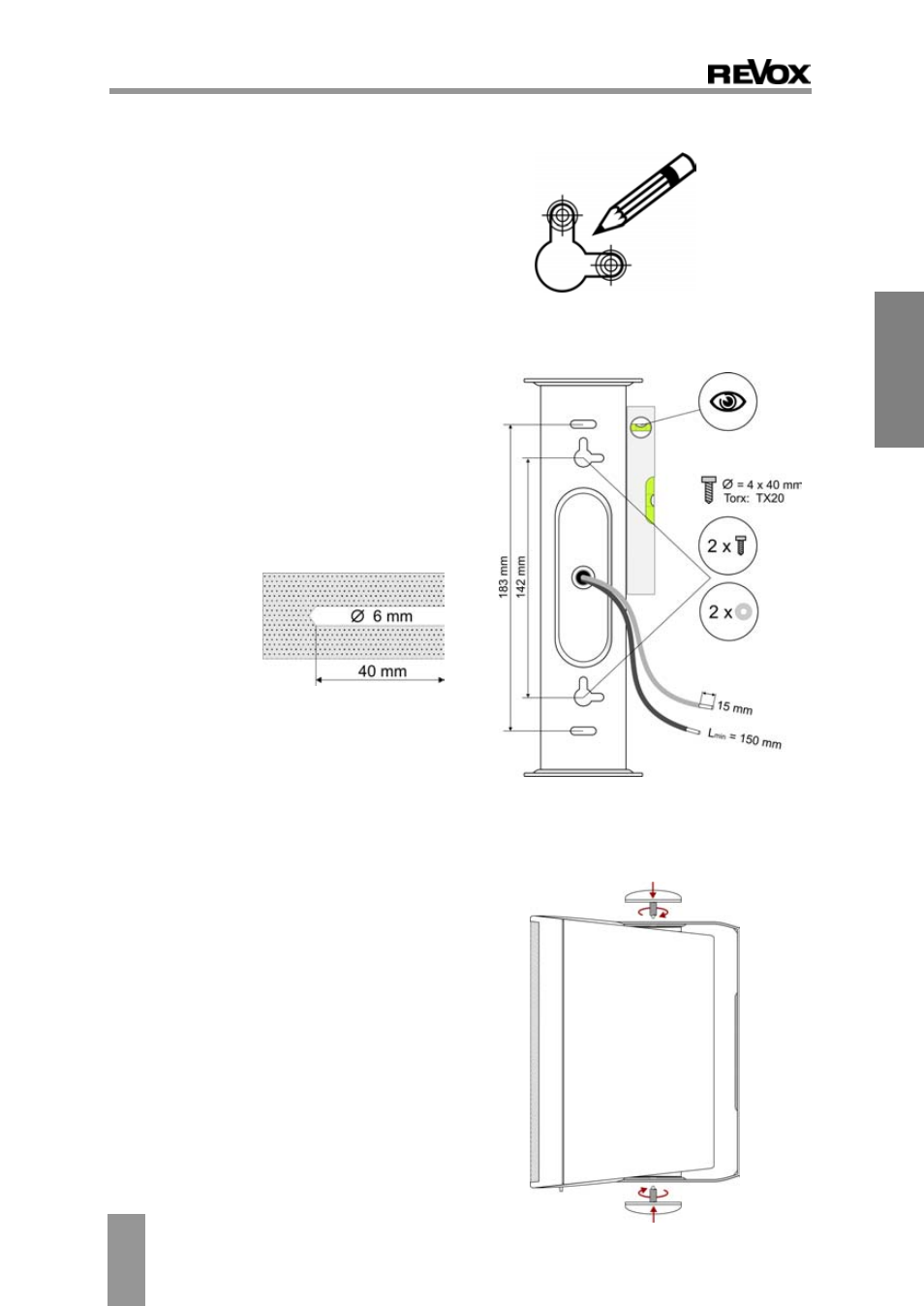

Figure 4
Figure 5
Figure 6
