Step 5 /
6

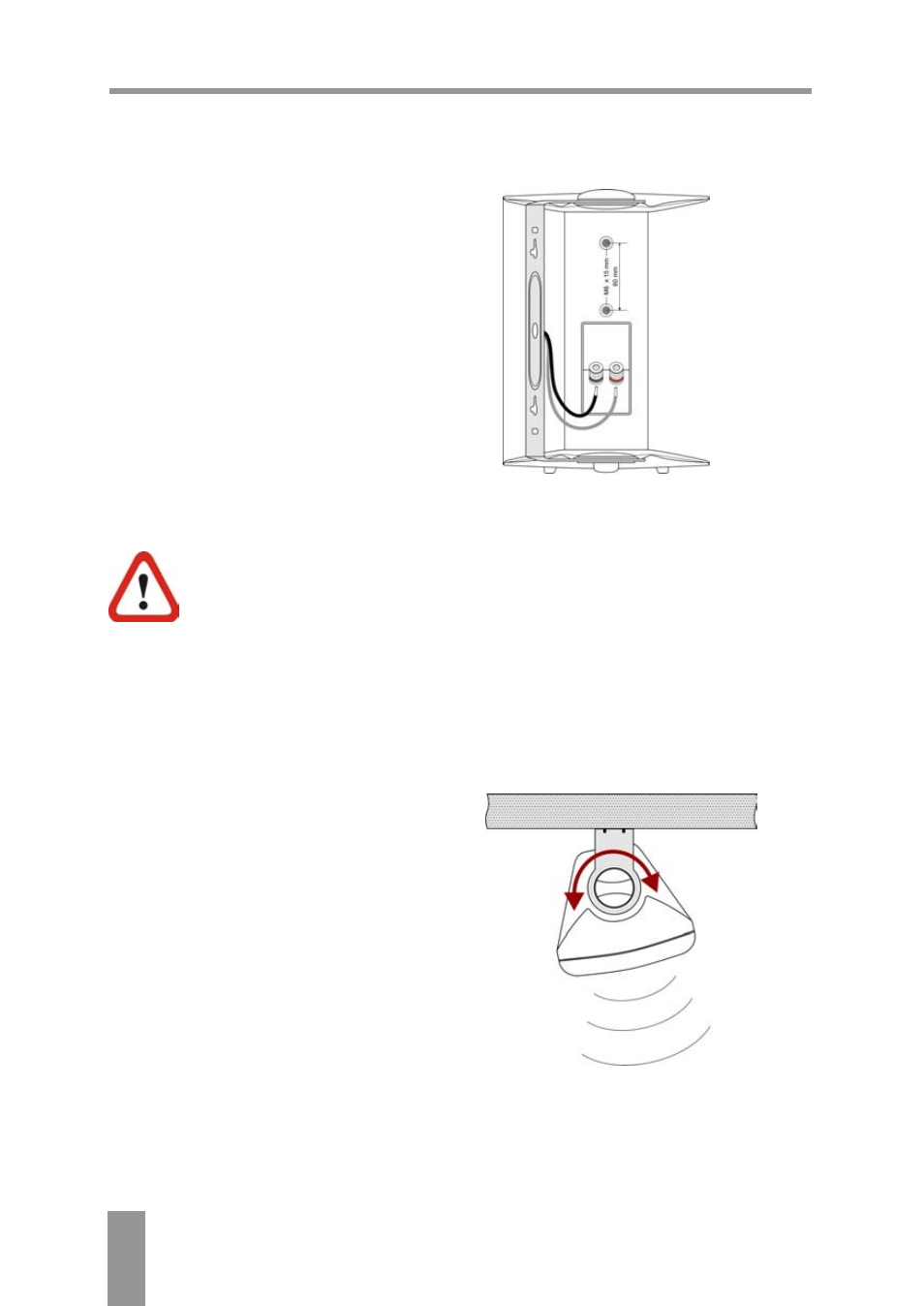

Turn the speaker far enough to
one side so that the connecting
terminal for the speaker cable is
easy to access. Now strip about
15 mm of the insulation off the
end of the cables and connect
them to pin connectors.
ƒ Connect the plus to the red
speaker connector
ƒ Connect the minus to the
black speaker connector
Protect the ends of the cables - see
Page 6.
Step 6 /
6
The speakers are lined up in the
last step. This should be done
such that both speakers are
directed towards the listening
position.
If it is a big listening area, the best
angle can be ascertained by
carrying out some sound tests.
Because of the broadband and
homogeneous emission
characteristics of the ODS 80, it is
no problem providing sound for
large areas.
Note: Incorrect speaker polarity
If one or more speakers are
connected with the wrong polarity,
there is a significant reduction in
the bass reproduction and the
sound portrait is uneven and
diffused.
Lining up: +/- 85° in
+/- 18 steps
P
LEASE NOTE
Before connecting the
speakers to your hi-fi
system (amplifier, receiver, power
amplifier etc.), make sure this has
been fully unplugged from the
mains.
