Crivit 3000-s - Handbuch

Freespool reel 3000-s / 5000-s
Freespool reel 3000-s / 5000-s
Instructions for use
Avokela 3000-s / 5000-s
Käyttöohje
Freerunner rulle 3000-s / 5000-s
Bruksanvisning
Fiskehjul 3000-s / 5000-s
Brugervejledning
Angelfreilaufrolle 3000-s / 5000-s
Gebrauchsanleitung
IAN 79140
1 drag knob
2 spool assembly
3 spool click gear fixed washer
4 spool click gear
5 spool click gear washer
6 main shaft
7 pinion gear nut
8 pinion gear nut fixed screw
9 bail holder side cover
10 bail holder side cover screw
11 rotor
12 line roller fixed screw
13 bail arm
14 bail arm screw
15 line roller bushing
16 line roller
17 line slider bushing
18 line roller washer
19 line roller ball bearing
20 bail holder screw
21 bail assembly
22 kick lever
23 spring bail trip
24 bail trip shaft spring seat
25 bail trip shaft spring
26 Bail arm side cover
27 Bail arm side cover screw
28 rotor washer
29 ball bearing fixed washer
30 ball bearing fixed washer screw
31 pinion gear ball bearing
32 ball bearing bushing
33 one way clutch ball bearing
34 one way clutch ball bearing spring
35 inside track
36 pinion gear
37 anti-reverse shaft
38 anti-reverse switch
39 anti-reverse switch screw
40 anti-reverse spring
41 body
42 handle
43 hexangular washer
44 body decorated cover
45 body ball bearing
46 drive gear
47 oscillating gear
48 oscillating gear screw
49 oscillating slider
50 oscillating slider fastener
51 oscillating slider screw
52 stop pin tension spring
53 drag knob stop spin
54 stop pin press block
55 stop pin press block screw
56 transposition trip shaft spring
57 lever connected shaft
58 return fiddled plate spring
59 return fiddled plate
60 return fiddled plate screw
61 body cover ball bearing
62 body cover
63 body cover screw
64 body cover decorated cover
65 handle assembly
66 right lever
67 lever decorated collar
68 lift lever
69 B2.5M*6.0*7.0
70 B2.5M*4.2*9.5
71 washer
72 rear drag knob stop washer
73 rear drag clicker gear
74 rear brake key washer
75 rear brake washer
76 rear brake eared washer
77 rear brake spring
78 rear brake screw
79 rear drag knob click ring
80 rear drag knob
81 rear drag knob retainer
82 rear drag knob ringer
drag assembly
101 front drag knob decorated cover
102 front drag knob
103 drag knob click gear
104 drag knob nut
105 drag knob spring
106 drag knob seat
107 drag knob spring
108 drag knob spring screw
spool assembly
201 hexangular retainer
202 key washer
203 drag knob washer
204 ear washer
205 spool
206 line hook
207 line hook copper nail
208 spool click gear spring
209 spool click gear screw
210 spool click gear
bail assembly
2001 line roller shaft
2002 bail
2003 bail holder
handle assembly
6501 handle cap insert
6502 joint
6503 handle joint fixed pin
6504 press
6505 press spring
6506 handle arm
6507 handle knob
6508 handle rivet
3mm
A
B
e
G
F
D C
1
1
5
4
2
2
3
4
5
IAN 79140
DelTA-sporT HANDelsKoNTor GMBH
Wragekamp 6
D-22397 Hamburg
Version: 02/2013
FreeSpool 3000-S: Delta-Sport-Nr.: AF-1550
FreeSpool 5000-S: Delta-Sport-Nr.: AF-1551
GB/IE
Congratulations!
With your purchase you have decided on a
high-quality product. Get to know the prod-
uct before you start to use it. Carefully read
the following operating instructions. Use
the product only as described and only for
the given areas of application. Keep these
instructions safe. When passing the product
on to a third party, always make sure that
the documentation is included.

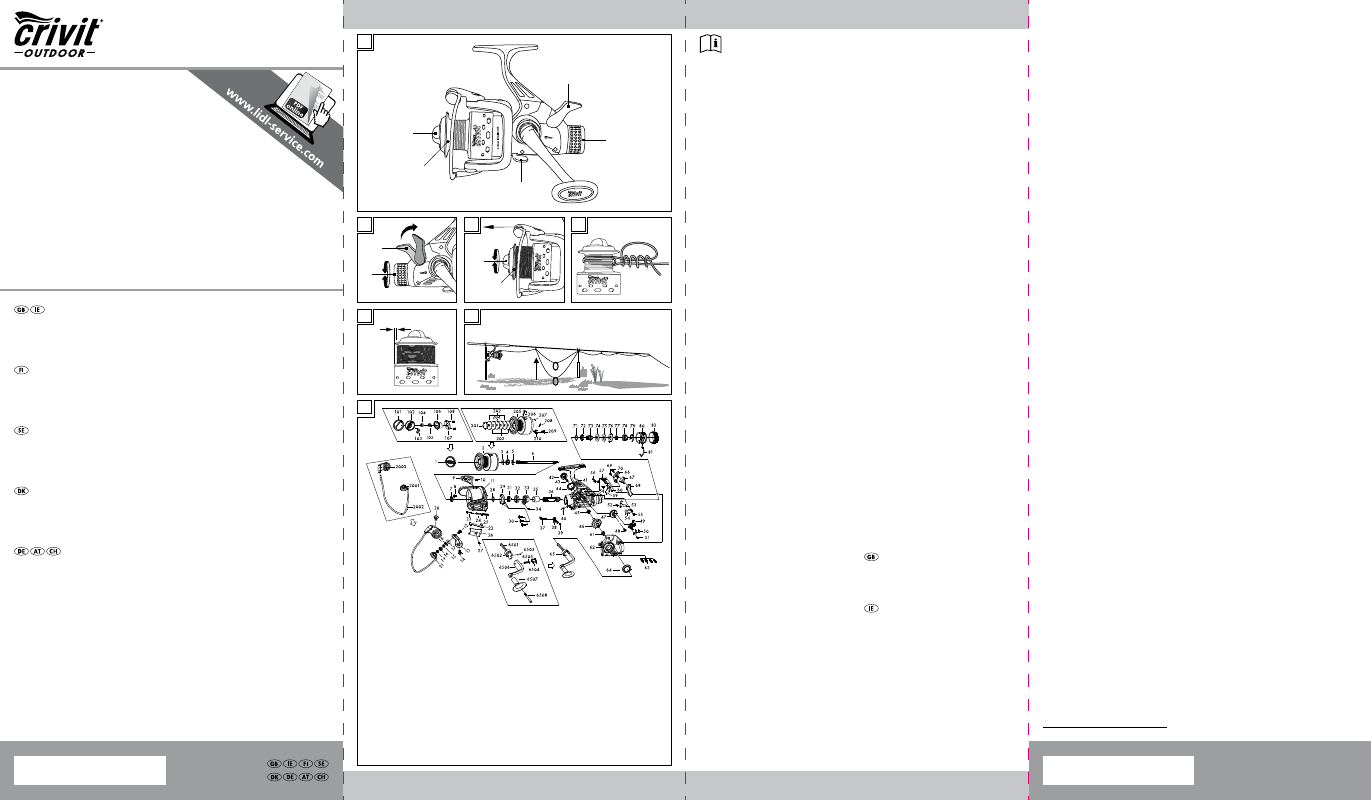

parts overview
(Fig. A)
1 Free spool lever
2 Knob
3 Anti-Reverse Lock – Prevents the spool
from spinning and twisting
4 Spool with front drag – Adjust your
drag here
5 Brake nut
Free spool system (Fig. B)
Slide the free spool lever 1 forward to
activate free spooling. If a fish bites it can
now take line off the spool with the bail
closed.
The free spooling drag can be adjusted
with the knob 2 without impacting the
brake. Free spooling will automatically
engage when the knob is turned. The bail
may also be closed manually.
The brake (Fig. C)
Large fish are too strong to simply reel in.
Adjust the brake nut 5 until the spool 4
slides with the rod bent about halfway. The
fish can now first make a run and pull line
off the spool, but quickly tires as it has to
fight the resistance from the brake.
spooling reel with line
Tie the line to the reel using a grinner knot
(Fig. D).
Spool the reel to about 3 mm from the lip
(Fig. E).
Using free spool
1. Trolling
When trolling from a boat with bait fish,
unlike artificial bait, you should not set the
hook immediately when the fish bites. It’s
rather advisable to first give the predatory
fish a few seconds to turn and swallow
the bait fish. Set free spooling as light as
possible – once it bites the fish can now
easily pull line off the spool while the fisher-
man gains time to grab the rod. Be sure to
pop the free spooling before it completely
unwinds, for example by slightly turning the
knob!
2. Bottom fishing (Fig. F)
The rod is on two holders, free spooling is
engaged. When a fish bites the bite indica-
tor will move upward. The free spool must
be closed before completely unwinding.
In standing water free spooling is fine-tuned
so that the biting fish can pull line off the
spool without the line wafting off the spool
or tangling as with an open bail. When
fishing rivers it must be adjusted according
to the current.
3. Fishing carp
In modern carp fishing the fish will hook
to the heavy lead itself. The bite is actually
the carp’s first method of flight. Unlike other
fishing methods in this case high resistance
is not only beneficial but required. Close
free spooling as far as possible to set
the hook deeper and take the line off the
bottom as soon as possible (risk of snags).
However, be sure the rod is securely seated
in the rod holder to avoid the rod falling
into the water on a bite!
3 Years Warranty
The product was produced with great care
and under constant supervision. You re-
ceive a three-year warranty for this product
from the date of purchase. Please retain
your receipt.
The warranty applies only to material and
workmanship and does not apply to misuse
or improper handling. Your statutory rights,
especially the warranty rights, are not af-
fected by this warranty.
With regard to complaints, please contact
the following service hotline or contact
us by e-mail. Our service employees will
advise as to the subsequent procedure as
quickly as possible. We will be personally
available to discuss the situation with you.
Any repairs under the warranty, statutory
guarantees or through goodwill do not ex-
tend the warranty period. This also applies
to replaced and repaired parts.
Repairs after the warranty are subject to a
charge.
IAN: 79140
Service Great Britain
Tel.: 0871 5000 720
(£ 0.10/Min.)
E-Mail: [email protected]
Service Ireland
Tel.: 1890 930 034
(0,08 EUR/Min., (peak))
(0,06 EUR/Min., (off peak))
E-Mail: [email protected]
