17

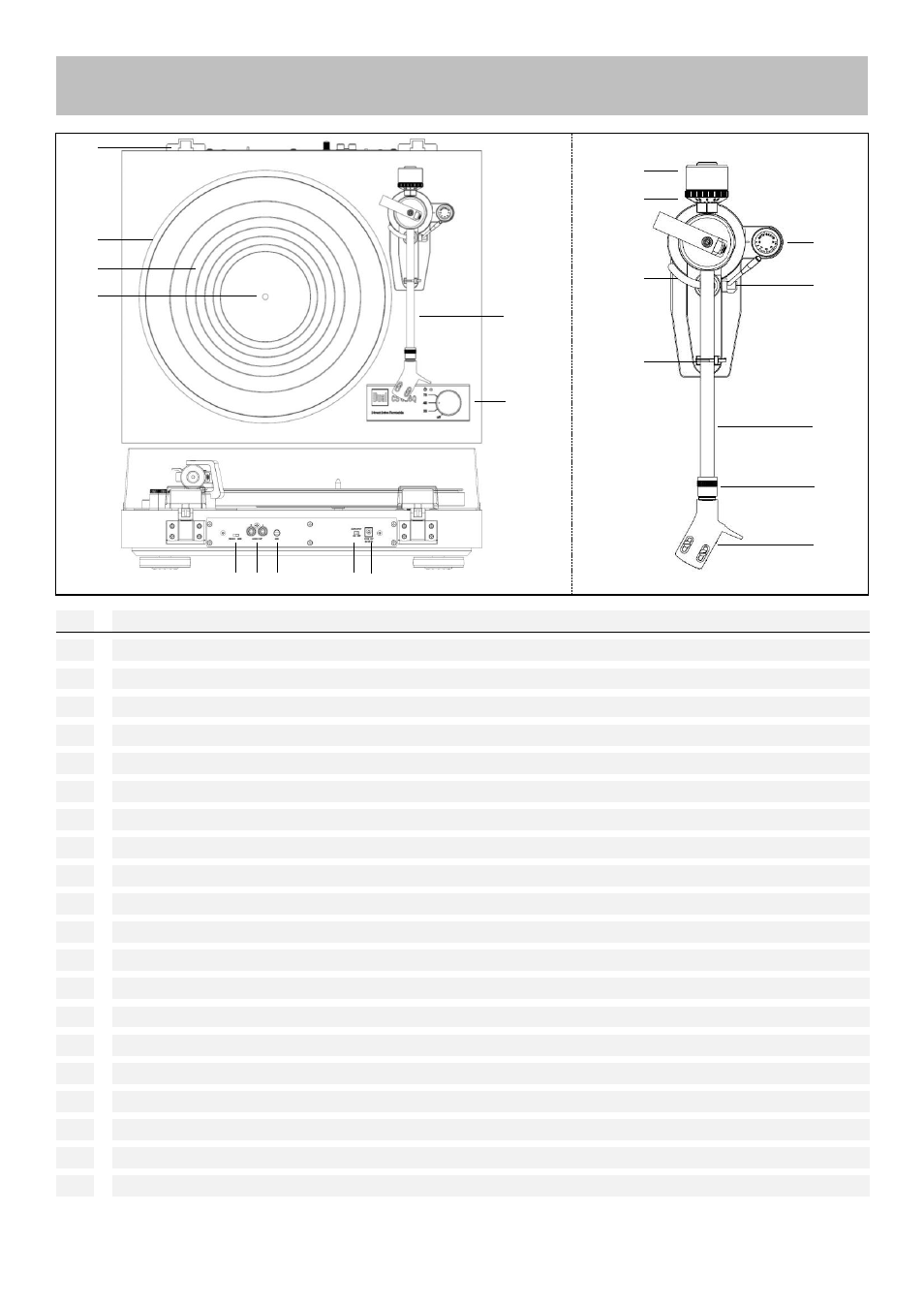

Product overview
Nr. Description
1 Dust cover hinges (2×)
2 Platter
3 Platter mat
4 Platter bearing
5 PHONO / LINE Switch Phono-preamp on-/off
6 RCA-Audio-Output red - right channel, white - left channel
7 GND: Ground connection
8 Auto stop automatic Switch Tonearm lift & Motor-stop on-/off
9 DC IN: 12 V-Input for Power supply
10 Speed selector Off, 33, 45, 78
11 Tonearm
12 Counterweight
13 Tracking force dial
14 Tonearm lift
15 Tonearm rest with safety fasterner
16 Anti-Skating-Adjustment
17 Tonearm lift lever
18 Tonearm
19 Union nut
20 Headshell
1
2
3
4
5 6 7
14
9
13
12
11
10
8
15
16
17
18
19
20
