Operating the turntable
Removing / Attaching the stylus protection cap

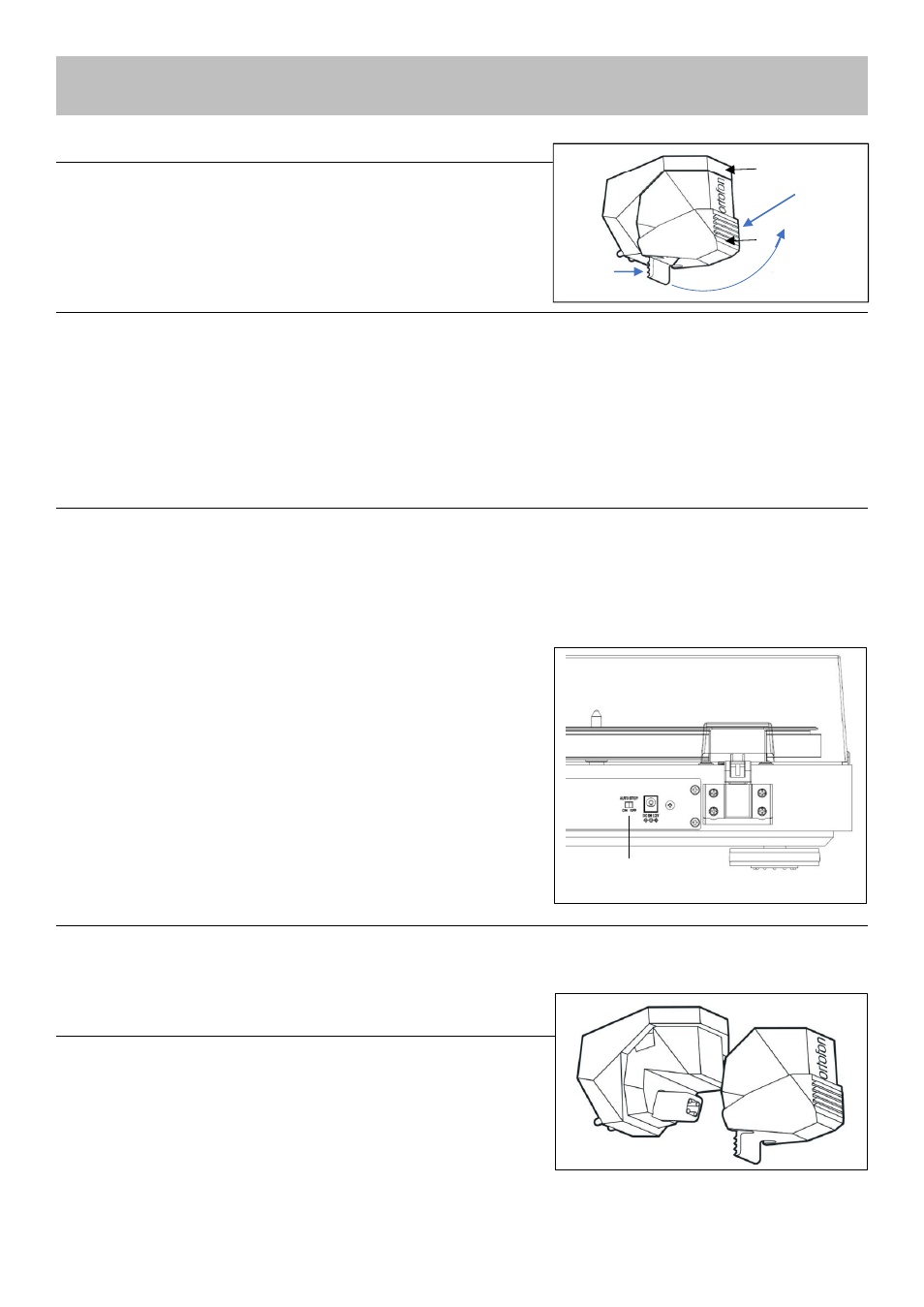

Remove the stylus protection cap from the pick-up (1) prior to playing a record. (Pic.1)
1. Push the stylus cap (2) on the bottom (B) as seen in the diagram.
Hold in position (A) while move it up in circular motion (C).
2. Replace the cap after playing the record.
To play the record (auto-stop OFF)
1. Place a record on the turntable, use the spindle adaptor to play singles.
2. The purple LED next to the speed selector is on when the power supply is connected.
3. Turn the speed selector to the required setting: 33, 45 or 78. The purple LED will change to blue. The motor will NOT start to turn.
4. Release the safety fastener on the tonearm rest and raise the tonearm with the lift lever.
5. The platter will start turning when the tonearm is moved onto the record. (There is NO auto stop at the end of the record)
6. Lower the tonearm with the lift lever.
7. At the end of the record: Use the tonearm lift lever to raise the tonearm.
8. Carefully position the tonearm above the tonearm rest. The motor will stop automatically. Lower the tonearm with the lift lever.
9. Secure the tonearm with the safety fastener on the tonearm rest.
To play the record (auto-stop ON) Pic.2
1. Switch on the auto-stop function with the selector switch on the back of the turntable (8)
2. Place a record on the turntable, use the spindle adaptor to play singles.
3. The purple LED next to the speed selector is on when the power supply is connected.
4. Turn the speed selector to the required setting: 33, 45 or 78. The purple LED will change to blue. The motor will NOT start to turn.
5. Release the safety fastener on the tonearm rest and raise the tonearm with the lift lever.
6. The platter will start turning when the tonearm is moved onto the record.
7. Lower the tonearm with the lift lever.
8. The blue LED will flash when the tonearm reaches the tie-off groove at the end. The auto stop is active, but the platter continues to run.
9. The turntable will recognise the locked groove and stops playing within 10 turns.
The tonearm is lifted at the same time. However, if the vinyl record is covered with
dust or the stylus is worn out, the AUTO STOP function will be activated within
2 minutes.
10. The tonearm has to be moved back manually onto the tonearm rest. The motor
will remain off.
11. Lower the tonearm with the lift lever. Secure the tonearm with the safety fastener
on the tonearm rest.
Note:
The LED will also flash if the tonearm is moved manually into the final zone without
lowering the lift when the auto stop function is turned on. The turntable will still
stop after 2-3 minutes.
To set the speed
The exact speed is fixed through a precision quartz. Simply select the required
setting for the record via the round speed selector. There is no need for nor the
option for any fine adjustment.
Replacing the stylus
The stylus is naturally exposed to wear and tear by the playback process.
Therefore, we recommend regular inspections.
1. Remove the stylus by pulling diagonally downwards. (Pic. 3)
2. Insert the stylus by doing the performing the reverse action.
Note:
Worn or damaged (splintered) styluses ruin records.
When you need to replace a stylus, use the original type if possible.
8
1
A- Hold
C- Move
B-Push
2
Pic. 1
Pic. 2
Pic. 3
