936.3291/-/0208/5.8d

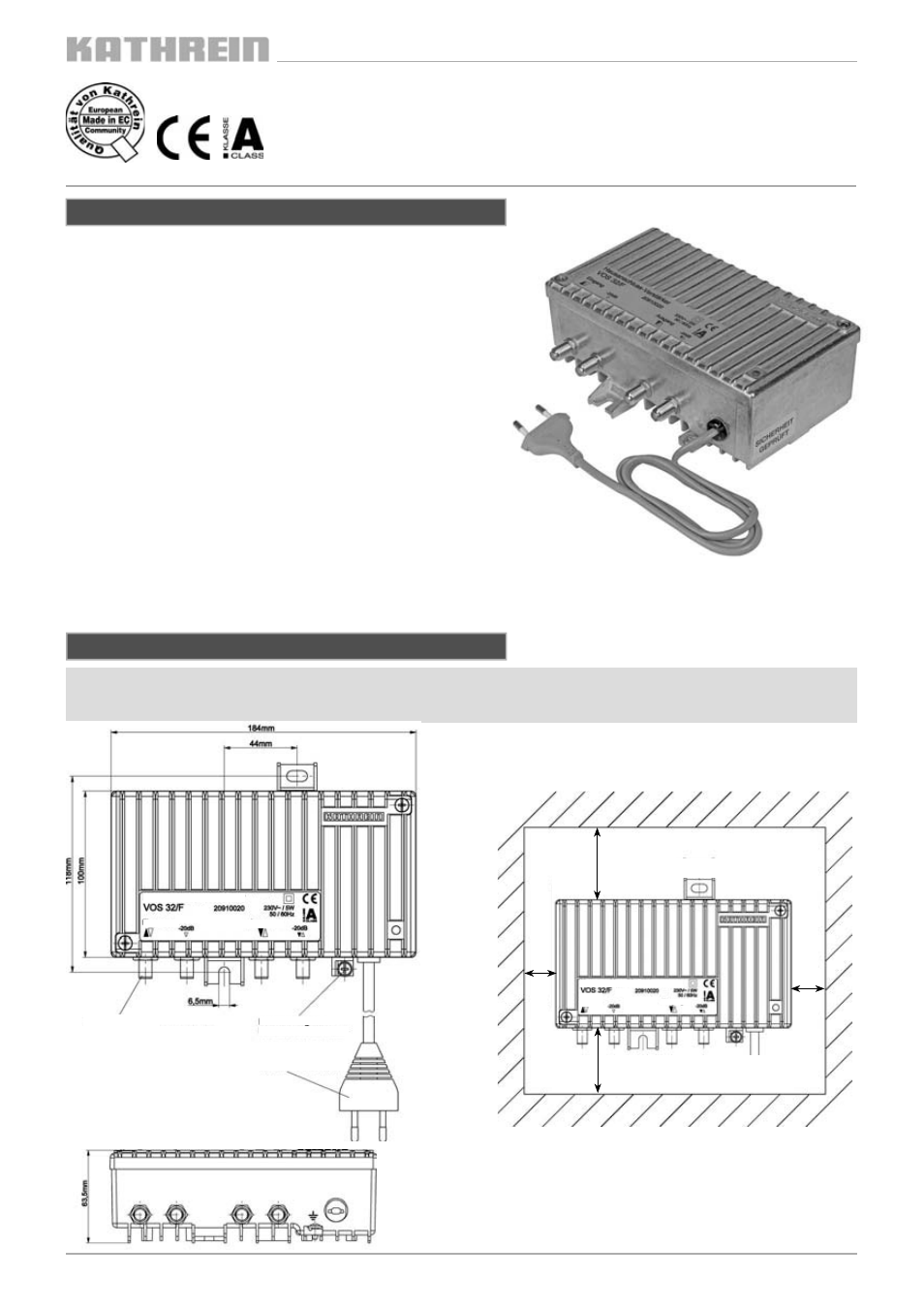

House connection amplifi er VOS 32/F
20910020
Q House connection amplifi er for modern HFC networks
Q Built-in power supply
Q Die-cast housing with F-type connectors
Q LED to indicate operation mode
Q Gain with interstage attenuation is switchable using jumpers
(delivery condition: high gain)
The maximum operation levels are also valid for operation with
interstage attenuation
Q Interstage equaliser (6 dB) can be connected using jumpers
(max. operation level increases by 2 dB)
Q Optional return path, can be equipped individually:
5-30 MHz with VGR 28/30; 5-65 MHz with VGR 28/65
(Delivery status: without return path amplifi er, with jumper)
Q Built-in variable attenuator and variable equaliser
Q Test socket on output -20 dB (with directional coupler)
Q Test socket on input -20 dB (can be connected with jumper) for
levelling of return path
Q Complies with: EN 60728-11, EN 50083-2 and EN 60065
Q For indoor installation
House connection amplifi er
The amplifi er complies with the requirements in the EMC Directive 2004/108/EC and Low-Voltage Directive 2006/95/EC applica-
ble at the time of shipping
Dimensions and Installation
Only by authorised personnel
Unplug from the mains before installation. The safety regulations in accordance with EN 60728-11 and EN 60065 are to be
observed!
a) Clearances to containing surfaces: ≥ 150 mm
b) Clearances to containing surfaces: ≥ 50 mm
Permissible installation
Caution!
Do not install on fl ammable materials!
a
a
b
b
House connection amplifi er
F-type socket 4x
House connection amplifi er
Potential equalisation
Clamping range 4...6 mm 2 Connection dimensions acc.
to IEC 61169-24
Mains power cable (L= approx. 1m)
Input Output
Input Output
