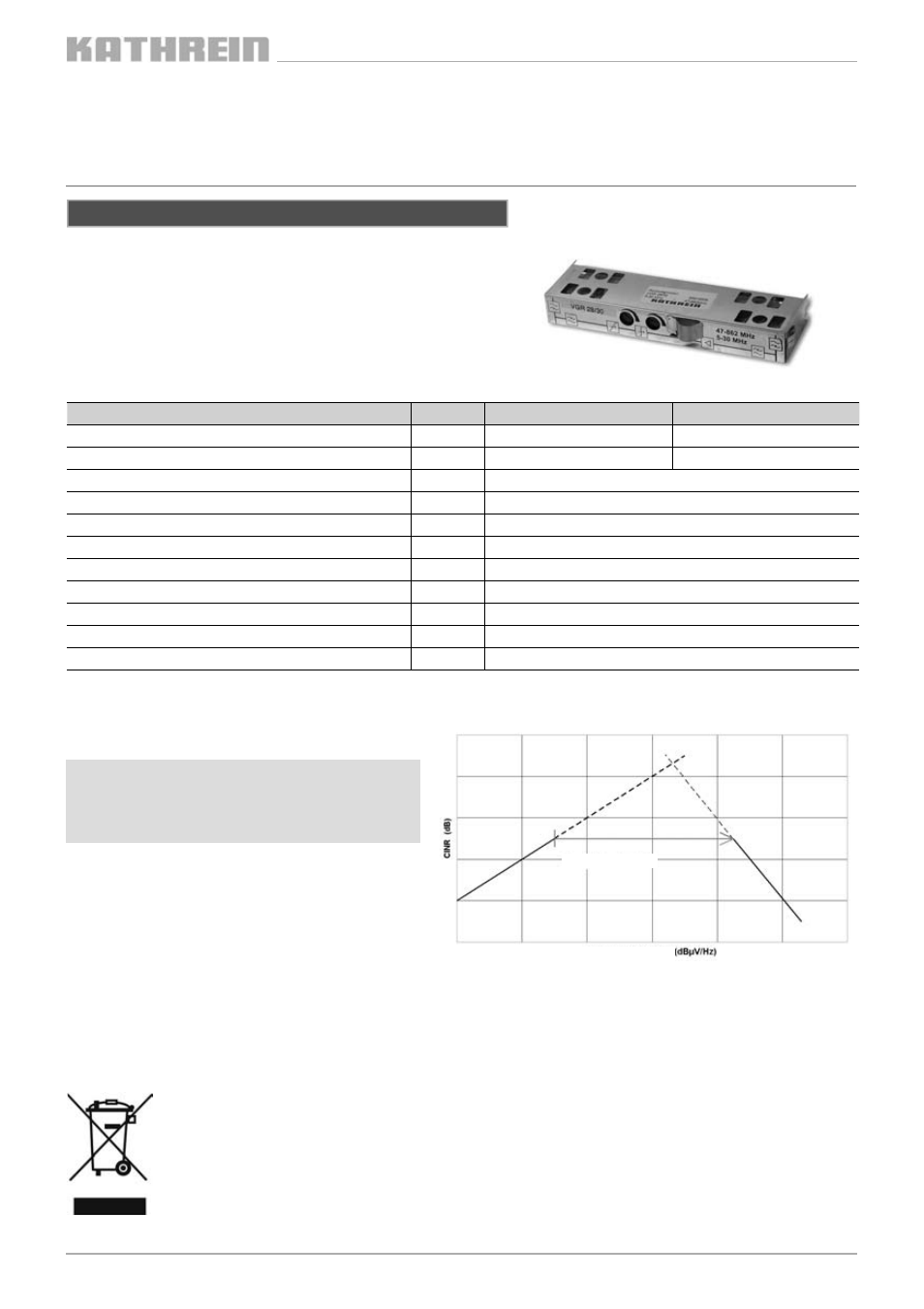

Return path amplifi ers
VGR 28/30
VGR 28/65 20910008
20910009
Q Suitable amongst others for house connection amplifi er VOS 32/F
(not included in the VOS 32/F delivery scope)
Q Adjustable equaliser and attenuator (Delivery status: max.
attenuation) on output
Typ VGR 28/30 VGR 28/65
Order no. 20910008 20910009
Frequency range MHz 5-30 5-65
Gain dB 28
Attenuator setting range (amplifi er output) dB 0-20
Equaliser setiing range (amplifi er output) dB 0-20
Input level density (CINR: 55 dB) ¹) dBµV/Hz -6
Dynamic range (input level density) dB 19
Max. output level 60 dB IM2/IM3 dBµV 112/118
Noise fi gure dB 5
Dimensions (W x H x D) mm 130 x 17 x 38
Packing unit/weight pc./kg 1 (10)/0.08
¹ ) According to EN 60728-3 (section 4.7)
CINR (Carrier to Interference-plus-Noise Ratio)
Dynamic range (dB)
Note:
The purpose of this graphic is to explain the terms “input
level density” and “dynamic range”. It is not possible to
derive any electrical data from the graphic.
See also: EN 60728-3 (point F.4.7)
Electronic equipment is not domestic waste - in accordance with directive 2002/96/EC
OF THE EUROPEAN PARLIAMENT AND THE COUNCIL dated 27th January 2003 on
used electrical and electronic appliances, it must be disposed of properly.
At the end of its service life, take this unit for disposal to an appropriate offi cial collection
point.
Input level density
