936.3291/-/0208/7.8d 936.3291/-/0208/7.4e

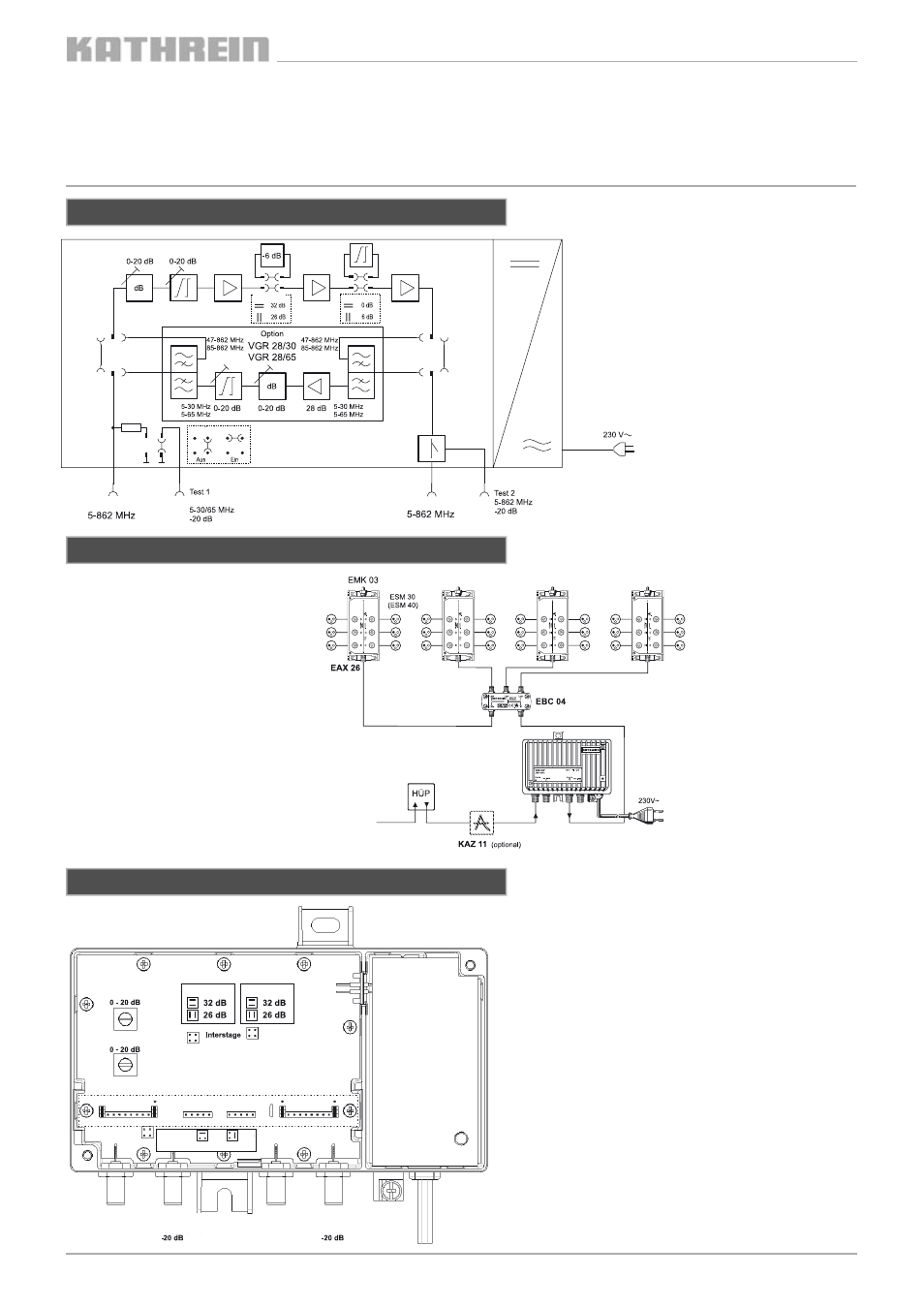

Block diagram
Application example
Standard house distribution network
for 24 connections in a central star
structure with modem outlets.
VOS 32/F
Control elements and plug-in module*
* After removing the housing cover
Output Input Test socket
return path output
T Test socket
output
Attenuation
Equalisation Gain Pre-emphasis
Return path amplifi er (optional)
Remove null bridge (*) fi rst
Switch off after measuring!
Test socket On Off
Input Output
Gain
Test socket
Return path output
Pre-emphasis
