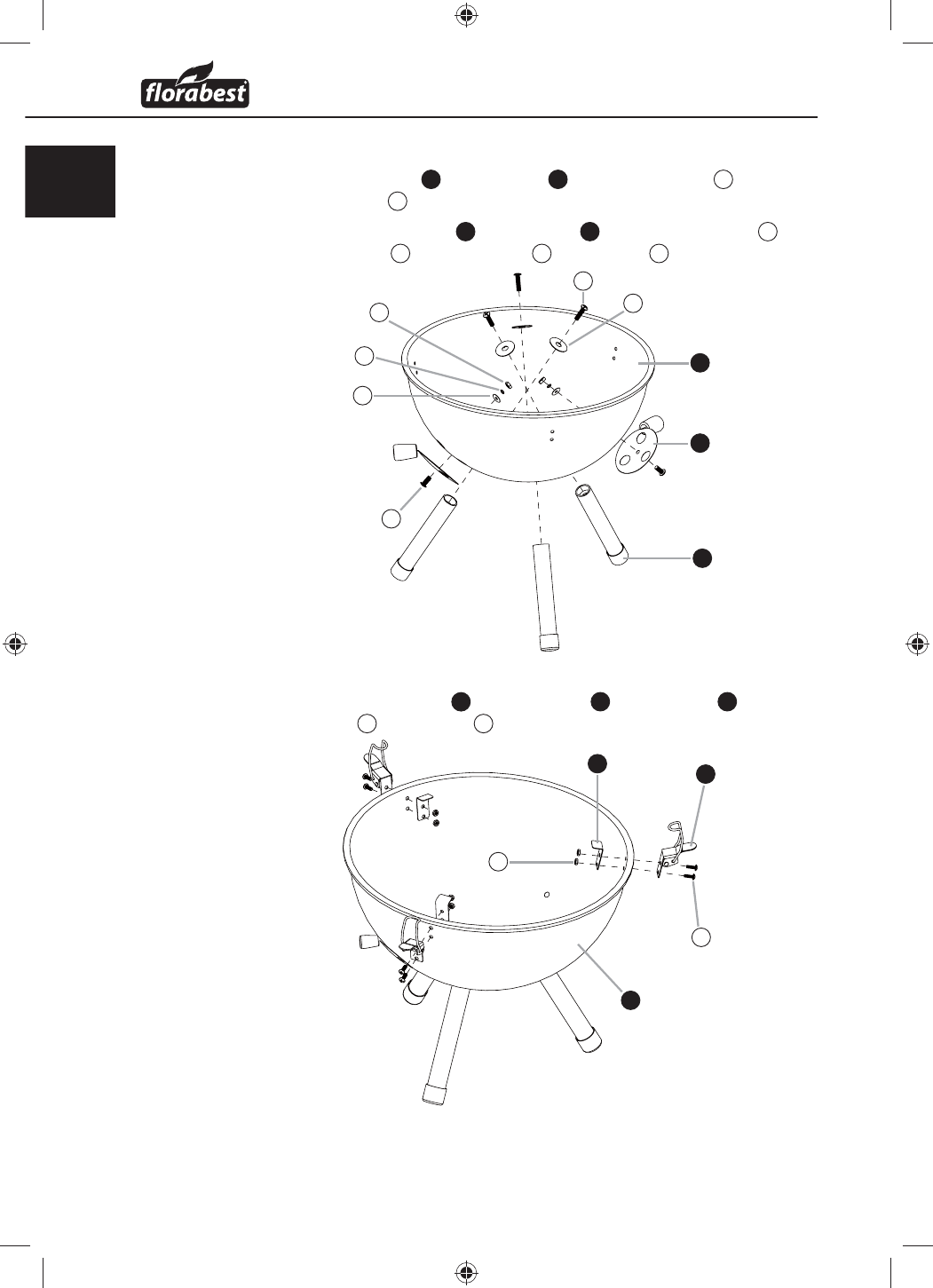

Step 2
♦ Screw the support legs 10 to the firebowl 7 using bolts M6 x 30 B and
washers Ø6 x 25 E .
♦ Secure the ventilation plates 2 to the firebowl 7 using screws M5 x 10 C ,
washers Ø6 x 12 G , spring rings Ø5 H and nuts M5 I .
Step 3
♦ Secure the bracket closures 8 and the brackets 9 to the firebowl 7 using
bolts M3x10 D and nuts M3 J .
10
B
2
7
E
G
H
I
C
8
9
7
D
J
