Finally, push all cables completely into the handlebar post and place the
computer bracket with computer onto the handlebar post. Be sure not to
pinch any cables. Finally, secure the bracket to the front of the ergometer
using only one of the removed screws (Fig. 3e).
Handlebar assembly
For this step you will need the handlebar (3), the handlebar cover (10),
the T-handle screw (9) and two screws (13) (Fig. 4a). We recommend
assembling the handlebar with the help of a second person.

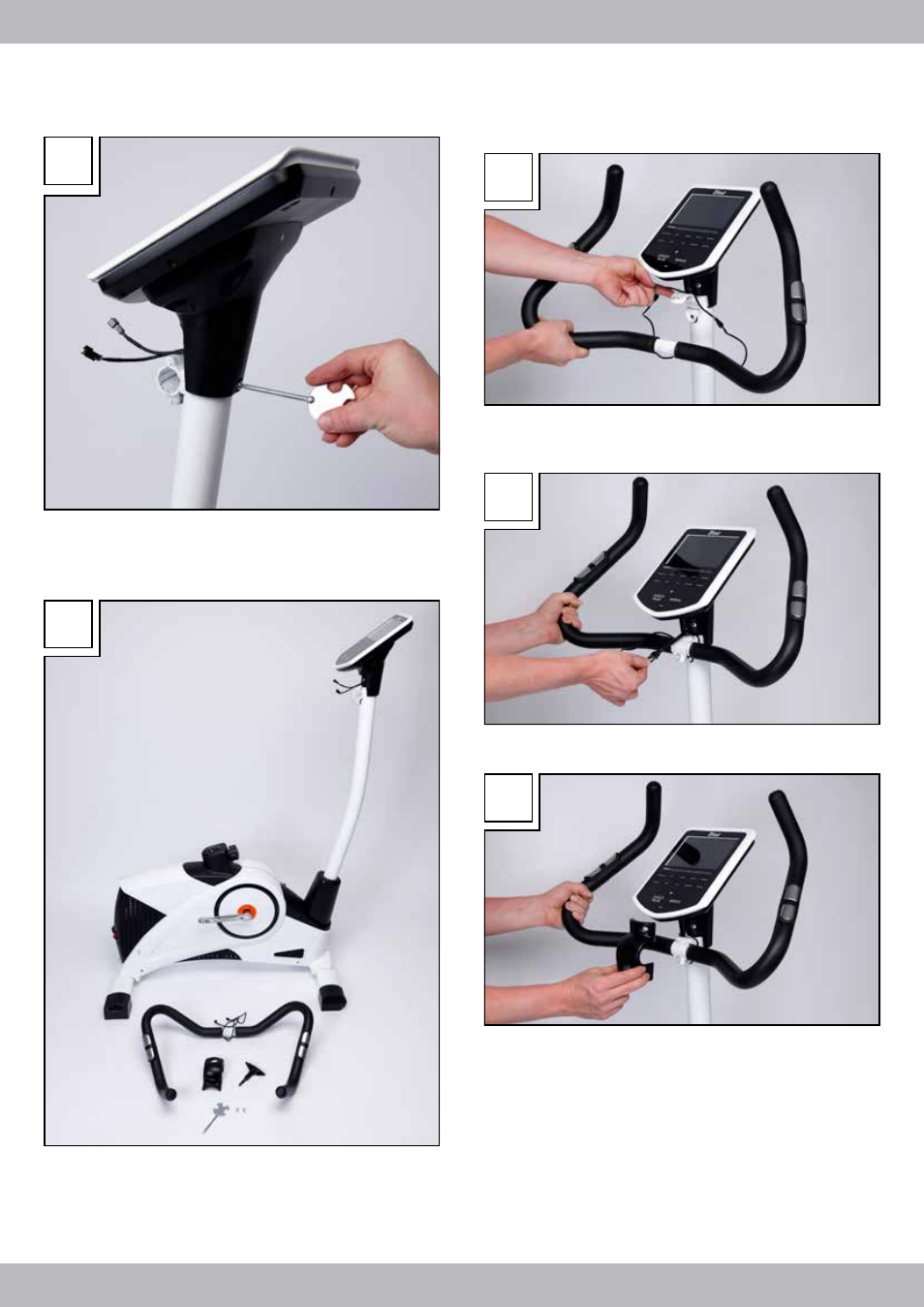

3e
4a
Hold the handlebar in front of the handlebar mount and connect the two
cables from the round opening of the handlebar post with the cables
from the handlebar. Now open the suspension clamps of the handlebar
clamp and place the grooved metal part of the handlebar in the half
shell of the handlebar tube (Fig. 4b).
Snap the suspension clamp shut so it wraps around the handlebar.
Continue to hold the handlebar in this position. Now push as much of the
two cables and plug connectors into the handlebar post (Fig. 4c).
Now attach the handlebar cover (10). Be careful not to pinch the pulse
cables (Fig. 4d).
4b
4c
4d
