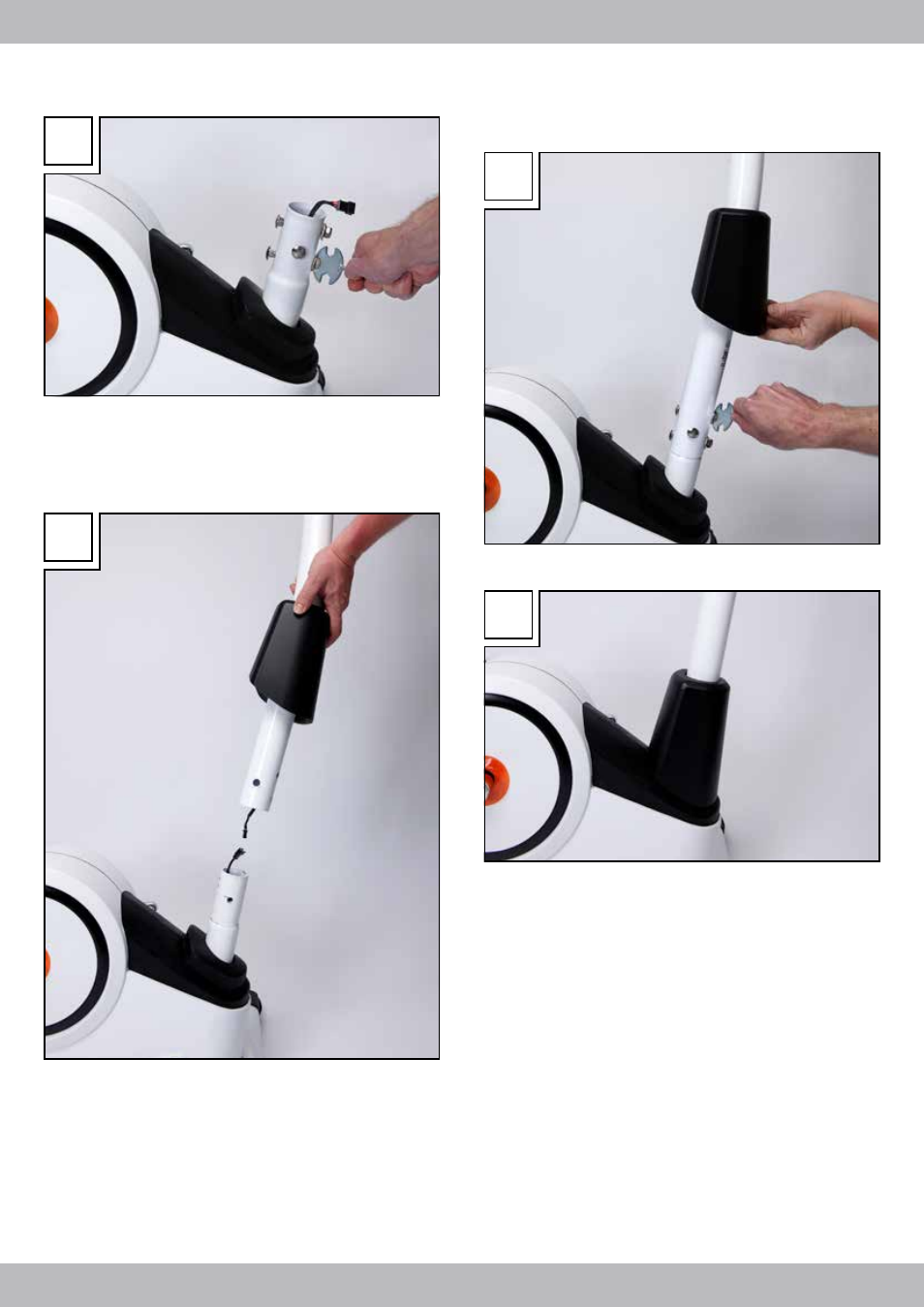

Remove the pre-assembled screws and washers (3 of each) using the
universal tool in the main frame (Fig. 2b) before beginning with the
assembly of the handlebar post.
Slide the plastic sleeve over the handlebar post so the narrow end is
pointing up toward the handlebar holder. Now connect the cable inside
the base frame with the cable inside the handlebar post. The plug is
designed so it only fits one way. Please do not use force but make sure
the two plugs match properly. When connecting the plugs you will feel
them clearly clicking in (Fig. 2c)!
Carefully slide the handlebar post over the main frame. Be sure not
to pinch any cables. Finally, use the previously removed screws and
washers to connect the handlebar post and the main frame. Be sure the
curved washers again are flat against the handlebar post according to
their shape (Fig. 2d).
After tightening the screws slide the plastic cover (21) over the screws
until it snaps into the plastic casing of the base body (Fig. 2e).
