5
Carrying out Assembly
CAUTION!
For your safety, the bolt heads should always
point outwards in order to prevent injury.
To prevent undesired material tension, firmly
tighten all screw connections only after finishing
assembly.
1. Fasten the ventilation disc (K) onto the front
pedestal panel (H), using an M5x10 bolt and
M5 nut. Attach the pedestal halves (G + H) with
M5x10 bolts and M5 nuts. Attention: All bolts
must be firmly tightened.
2. Fasten the pedestal (G + H) to the base (J),
using M5x10 bolts and M5 nuts.
3. Fasten the fire bowl (F) to the pedestal (G + H),
using M5x10 bolts and M5 nuts.
4. Fasten the fire bowl handle (E) to both sides
of the fire bowl (F), using M5x10 bolts and M5
nuts.
5. Fasten the windbreak (A) to the fire bowl (F),
using M5x10 bolts and M5 nuts.
6. Insert the coal grill (D) into the fire bowl (F).
7. Insert the ash pan (I) into the pedestal (G + H)
from the side.
8. Push the wooden handles (C) for the cooking
grill onto the protruding ends of the cooking
grill (B).
9. Insert the cooking grill (B) into the windbreak
(A) at the desired position.
WARNING!
To prevent the barbecue from tipping over, it
must be placed on a stable and secure surface
during operation.

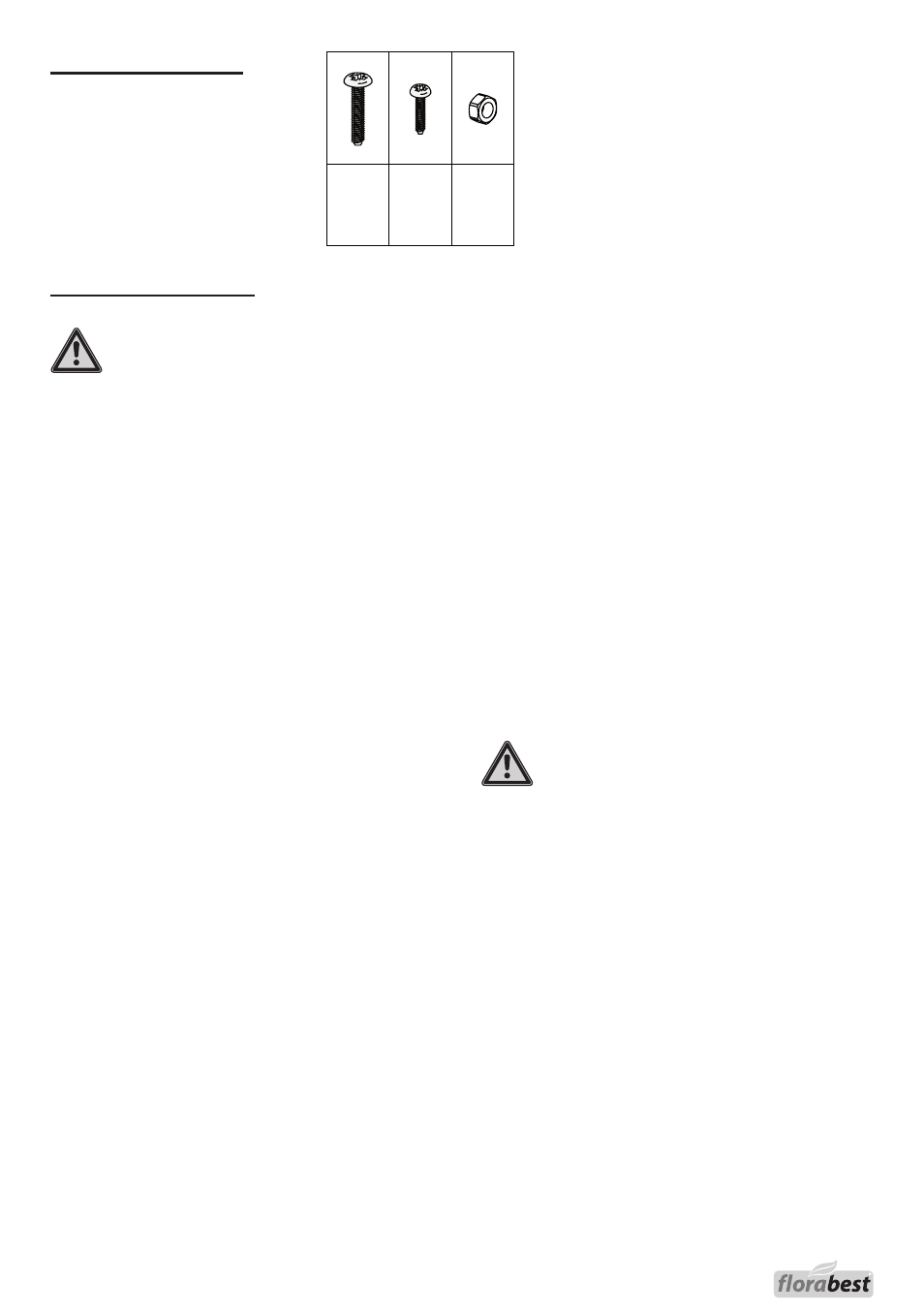

M5x25
2x
M5x10
22x
M5
1x
M5
24x
Connection Elements
(P
re
-
assembled connection elements are also
included in the list
!)
