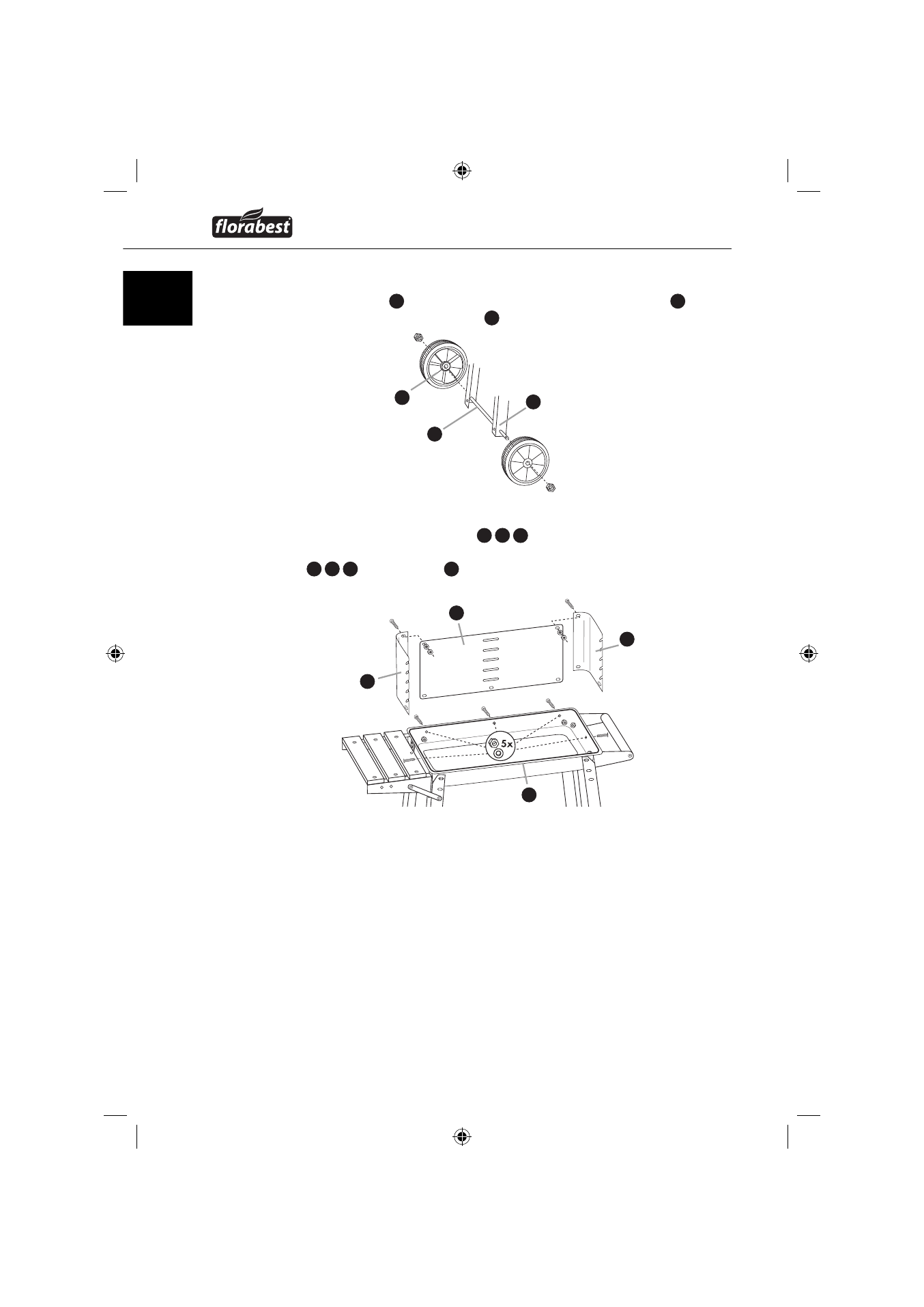

Step 5
♦ Guide the axle 13 through the lower boreholes on the wheel braces 14
and secure the placed-on wheels 12 with the self-securing nuts M8.
Step 6
♦ Attach the wind shield elements 2 3 4 using M5x10 bolts, Ø6x12
washers and M5 nuts (only at the top). Next, bolt the wind shield elements
2 3 4 to the fi re bowl 6 from the inside using M5x10 bolts, Ø6x12
washers and M5 nuts.
12
13
14
2
3
4
6
