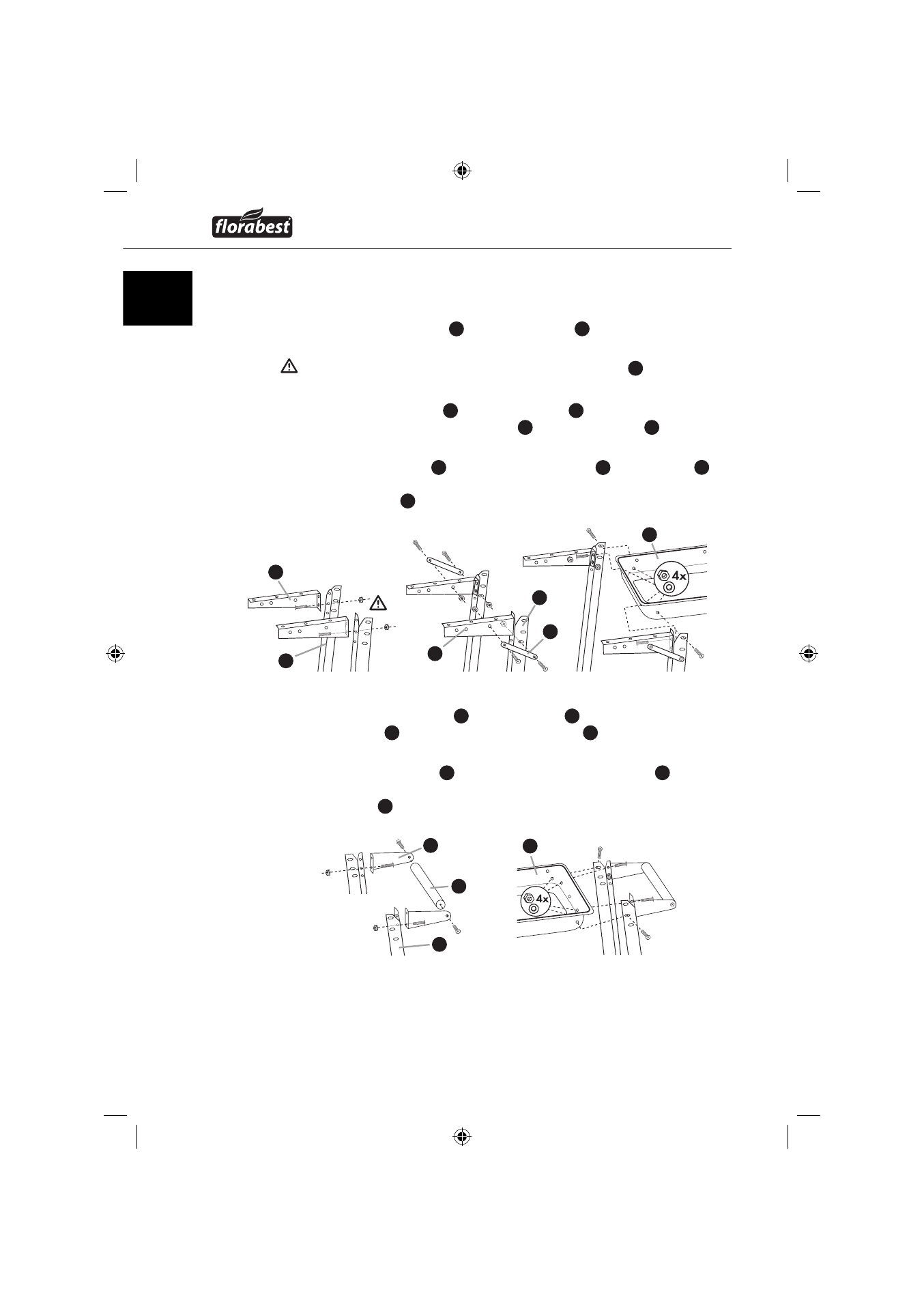

Assembly procedure
Step 1
♦
Connect the shelf brackets
15
to the wheel braces
14
using M6x12 bolts
and M6 nuts.
Please take note that only the lower hole of the shelf bracket
15
is used for
making the bolted connection.
♦
Fix the reinforcing braces
16
to the wheel braces
14
using M6x12 bolts
and M6 nuts. Fix the reinforcing braces
16
to the shelf brackets
15
using
M6x12 bolts and M6 nuts.
♦
Fit the left wheel braces
14
with attached shelf brackets
15
to the fi re bowl
6
using the M6x12 bolts, Ø6x16 washers and M6 nuts. The upper hole in
the wheel braces
14
is needed to do this.
Step 2
♦
Assemble the handle holder
8
and stand braces
9
as described in step 1.
Fix the handle
7
between the short handle holders
8
and then secure
them by means of the wood screws Ø 4x15.
♦
Fit the right stand braces
9
with the fi tted handle to the fi re bowl
6
using
the M6x12 bolts, Ø6x16 washers and M6 nuts. The upper hole in the
stand braces
9
in needed to do this.
15
15
14
14
16
6
8
7
9
6
