Informationen

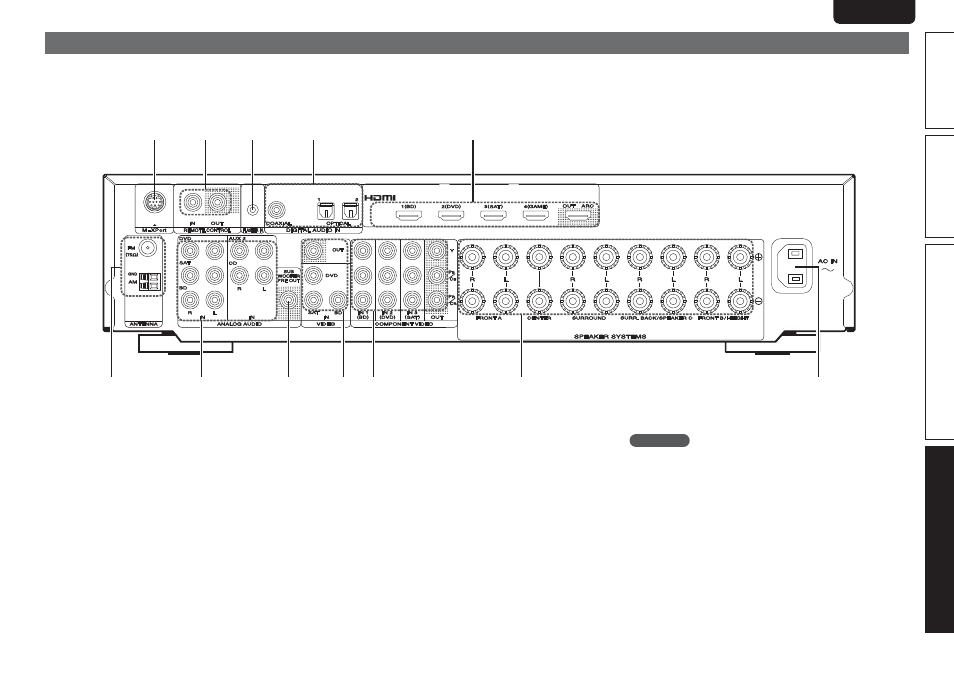

Rückseite
Lesen Sie die Erläuterungen auf der Seite, die in Klammern angegeben ist ( ).
q
w
e
r
t
y
u
o
Q0
Q1
Q2
i
q
UKW/MW-Antennenanschlüsse ············································ (19)
w
Analoge Audioanschlüsse ·········································· (16, 17, 19)
e
SUB WOOFER PRE OUT-Anschluss ····························· (5, 32, 33)
r
VIDEO-Anschlüsse ····························································· (16, 17)
t
COMPONENT VIDEO-Anschlüsse ···································· (16, 17)
y
Lautsprecheranschlüsse ··············································· (5, 32, 33)
u
Wechselstromeingang (AC IN) ················································· (5)
i
HDMI-Anschlüsse ···································································· (15)
o
Digitale Audioanschlüsse ··········································· (16, 17, 19)
Q0
FLASHER IN-Buchse
Bei Verwendung einer Control Box oder anderer Steuergeräte, mit
der dieses Gerät bedient werden kann.
Q1
REMOTE CONTROL connectors ············································· (35)
Q2
M-XPort connector ·································································· (20)
HINWEIS
Berühren Sie nicht die inneren Anschlusskontakte auf der Rückseite.
Elektrostatische Entladung könnte das Gerät beschädigen.
