Installation di-
mensions

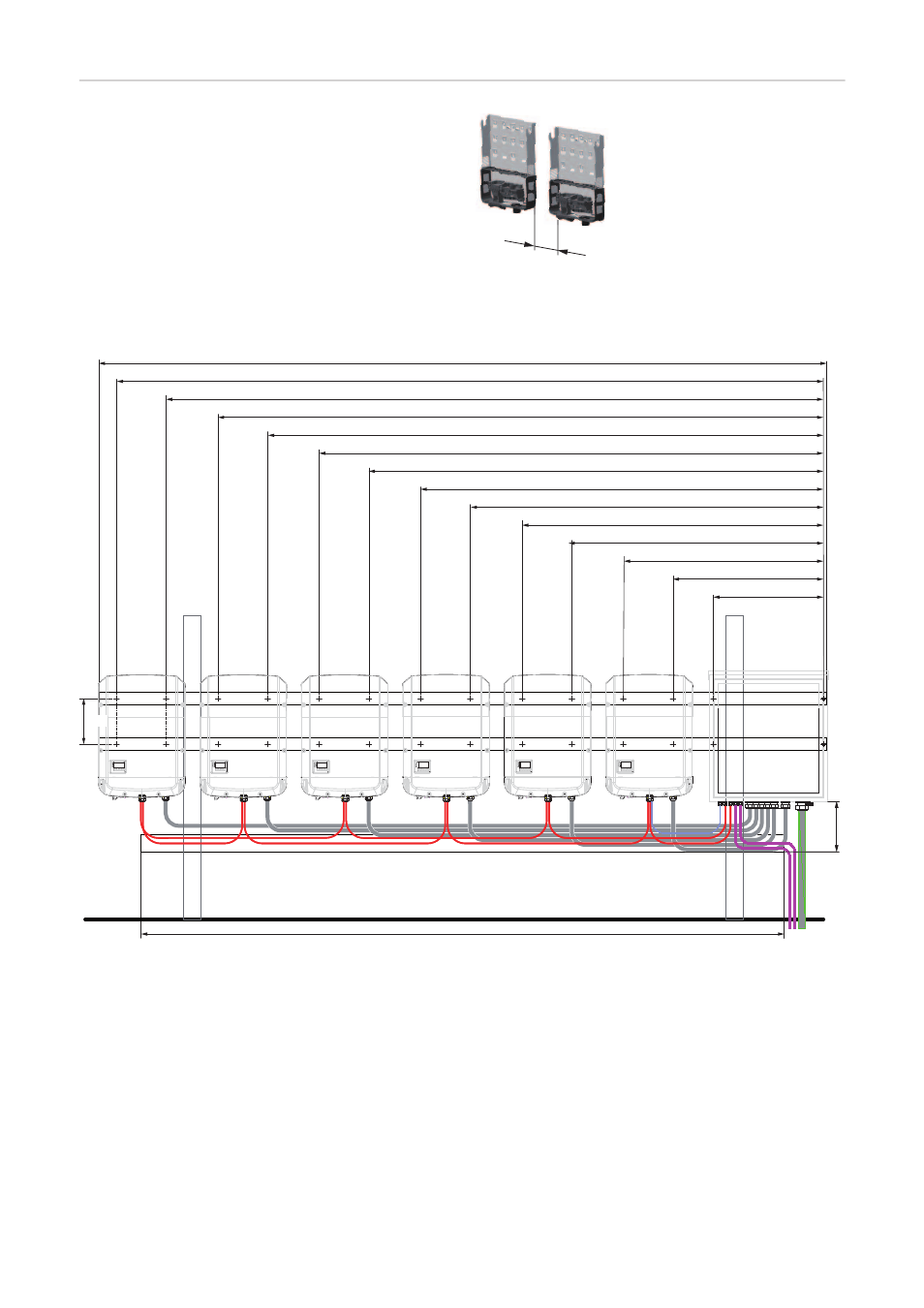

Fronius Power Package with AC Combiner on right and AC outlet on right
120 mm
Where there are fewer than six inverters, the length of the crossmembers and the cable tray is reduced by 600
mm per inverter.
The dimensions are also applicable for wall mounting.
IMPORTANT! It is vital that the specified installation dimensions are complied with when using prefabricated
cables.
AC IN
AC
OUT
4215
3800
300
730
910
1215
1510
1815
2110
2415
2710
3015
3310
3910
1 2 3 4 5 6
4300
3615
270
