71
EN
Connecting the
AC overvoltage
protection: Over-
voltage protec-
tion only in the

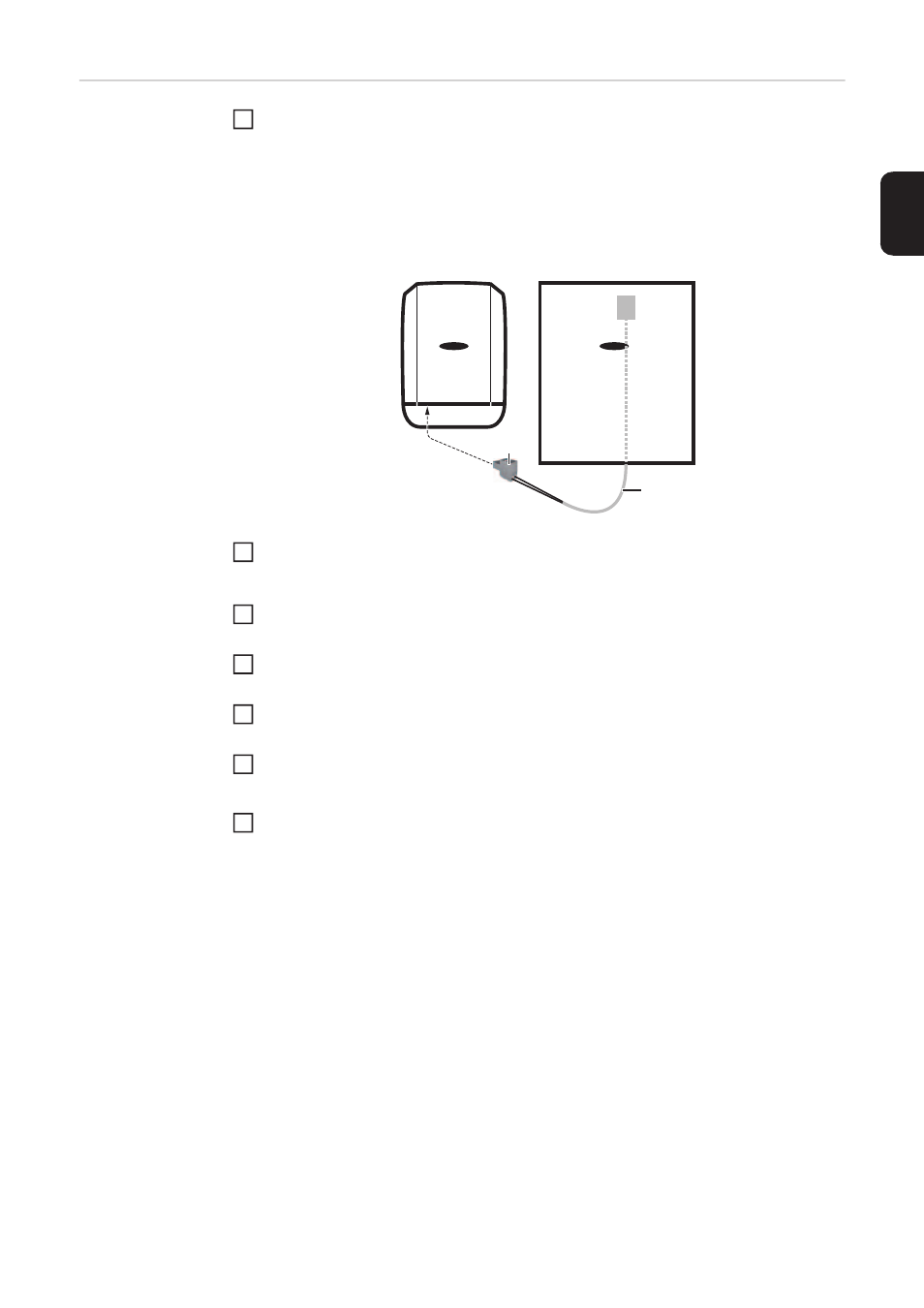

AC Combiner Connect the cable (1) from the AC Combiner to the inverter directly adjacent to the AC
Combiner as follows:
Fit the DATCOM cover to the inverter
Overview
(1)
2-pin cable from the AC overvoltage protection of the AC Combiner, includ-
ing clamp, one individual cable connected
(2) Mating connector for the multifunction current interface of the inverter
Insert the cable (1) through the metric screw joint into the data communication area
of the inverter
Disconnect the mating connector (2) from the inverter
Disconnect the clamp from the cable (1)
Connect the cable (1) to the mating connector (2)
Connect the cable (1) with the mating connector (2) to the multifunction current in-
terface of the inverter
1
1
(1)
(2)
1a
1b
1c
1d
1e
2
