Fronius Power Package - Handbuch (Seite 67)

65
EN

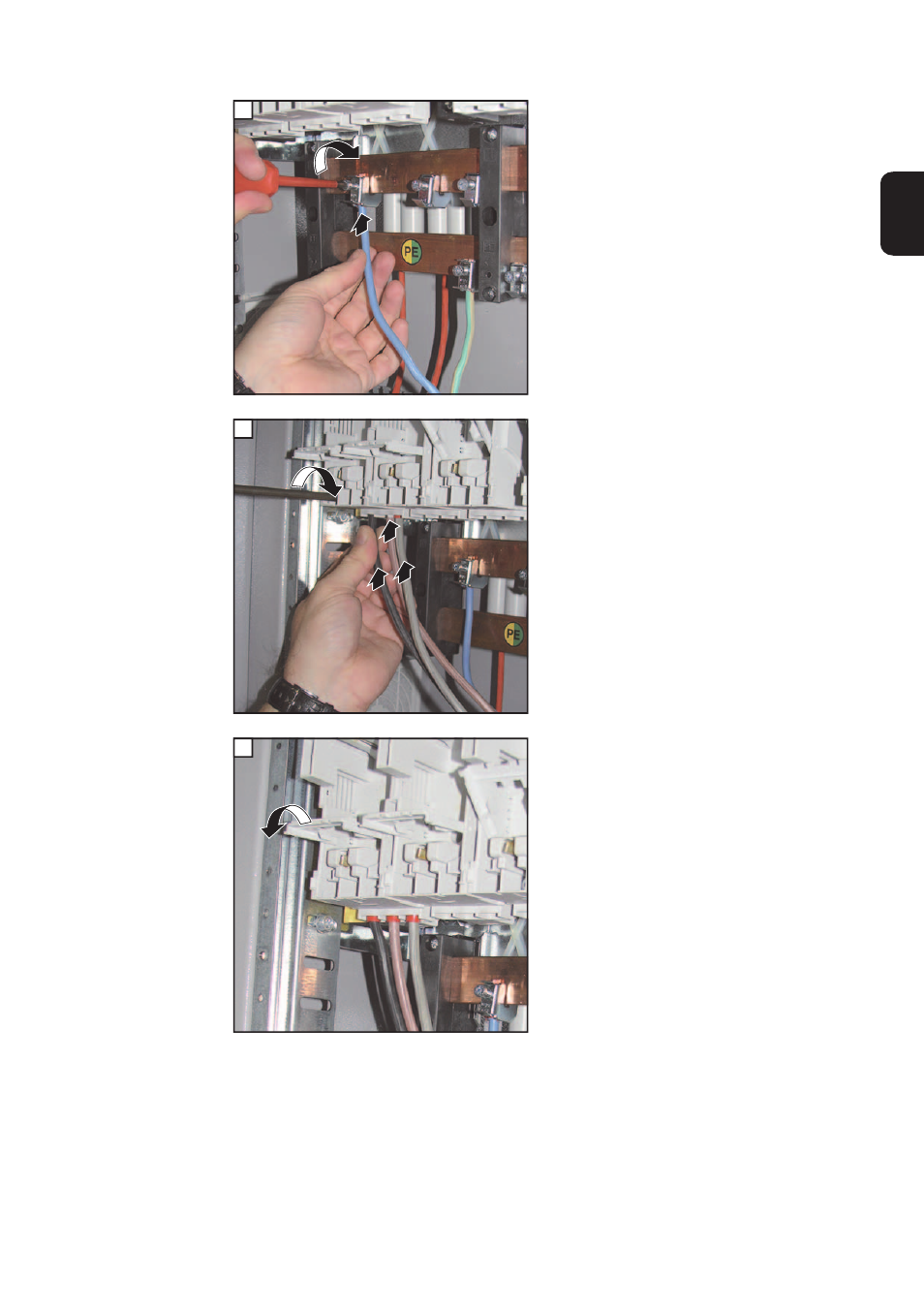

2 - Connect the neutral conductor N to the
upper copper rail labelled with "N"
TX25 Torx screwdriver
Tightening torque = 3.0 Nm
3 - Connect the L1, L2 and L3 lines to the
fuse holder
TX25 Torx screwdriver
Tightening torque = 12.0 Nm
4 - Pull the plastic clamp downward and
lock in place
2
1
6
4
1
2
3
3x
TX25
7
1
8
