Fronius Power Package - Handbuch (Seite 57)

55
EN

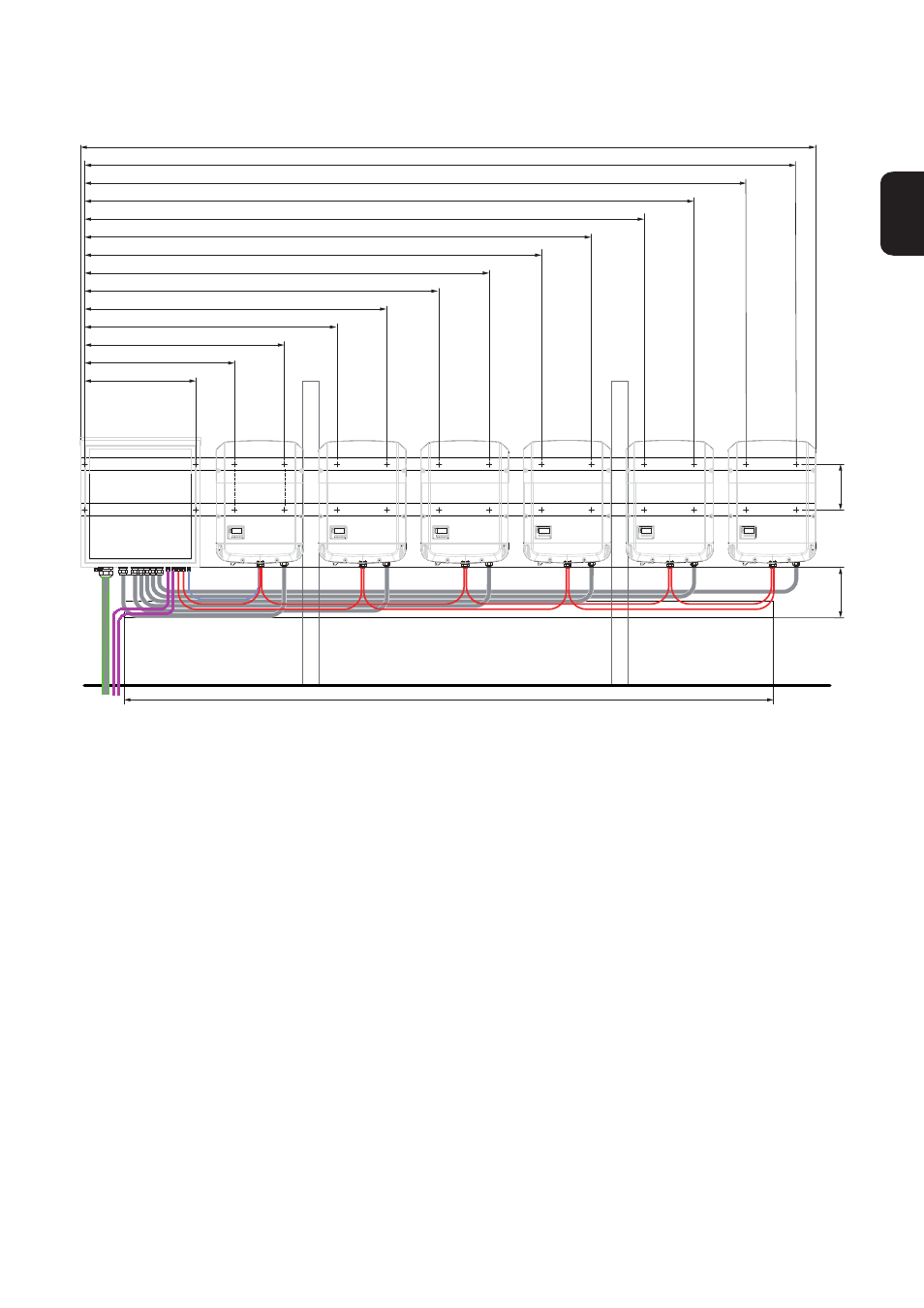

Fronius Power Package with AC Combiner on left and AC outlet on left
Where there are fewer than six inverters, the length of the crossmembers and the cable tray is reduced by 600
mm per inverter.
The dimensions are also applicable for wall mounting.
IMPORTANT! It is vital that the specified installation dimensions are complied with when using prefabricated
cables.
AC OUT
4300
270
3800
300
730
910
1215
1510
1815
2110
2415
2710
3015
3310
3615
3910
4215
AC IN
1 2 3 4 5 6
