64

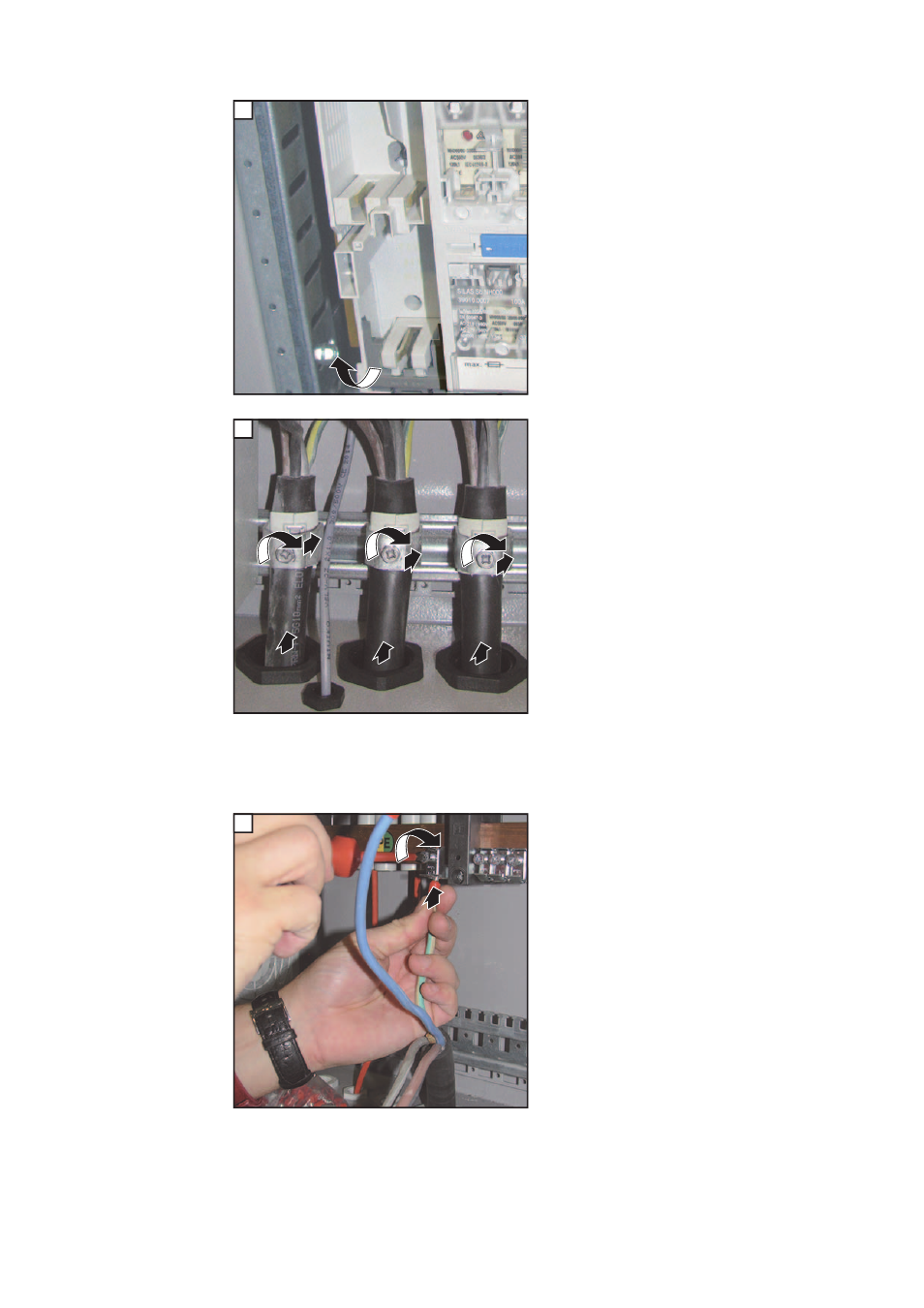

8 - Pull the plastic clamp upward
9 - Loosen the metric screw joint on the
underside of the AC Combiner
- Insert the AC IN cable through the me-
tric screw joint from below into the AC
Combiner
- Attach the clamp of the strain-relief de-
vice to the rail
- Fix the AC IN cable in place using the
clamp of the strain-relief device
Cross-head screwdriver
Tightening torque = 1.5 Nm
IMPORTANT!
-
Use appropriate ferrules when connecting the individual lines.
- Calculate the cable lengths so that no loops are created.
1 - Connect the ground conductor PE to
the lower copper rail labelled with "PE"
TX25 Torx screwdriver
Tightening torque = 3.0 Nm
1
3
3
2
1
4 7
5
8
6
9
4
2
1
5
