63
EN
Connecting AC IN cables
General Connecting AC cables is only necessary if the AC Combiner is supplied without prefabri-
cated cables.
The installer is personally responsible for selecting and purchasing the appropriate cables.
Minimum requirement for cables
Working with and
on the inverters
Connecting AC IN

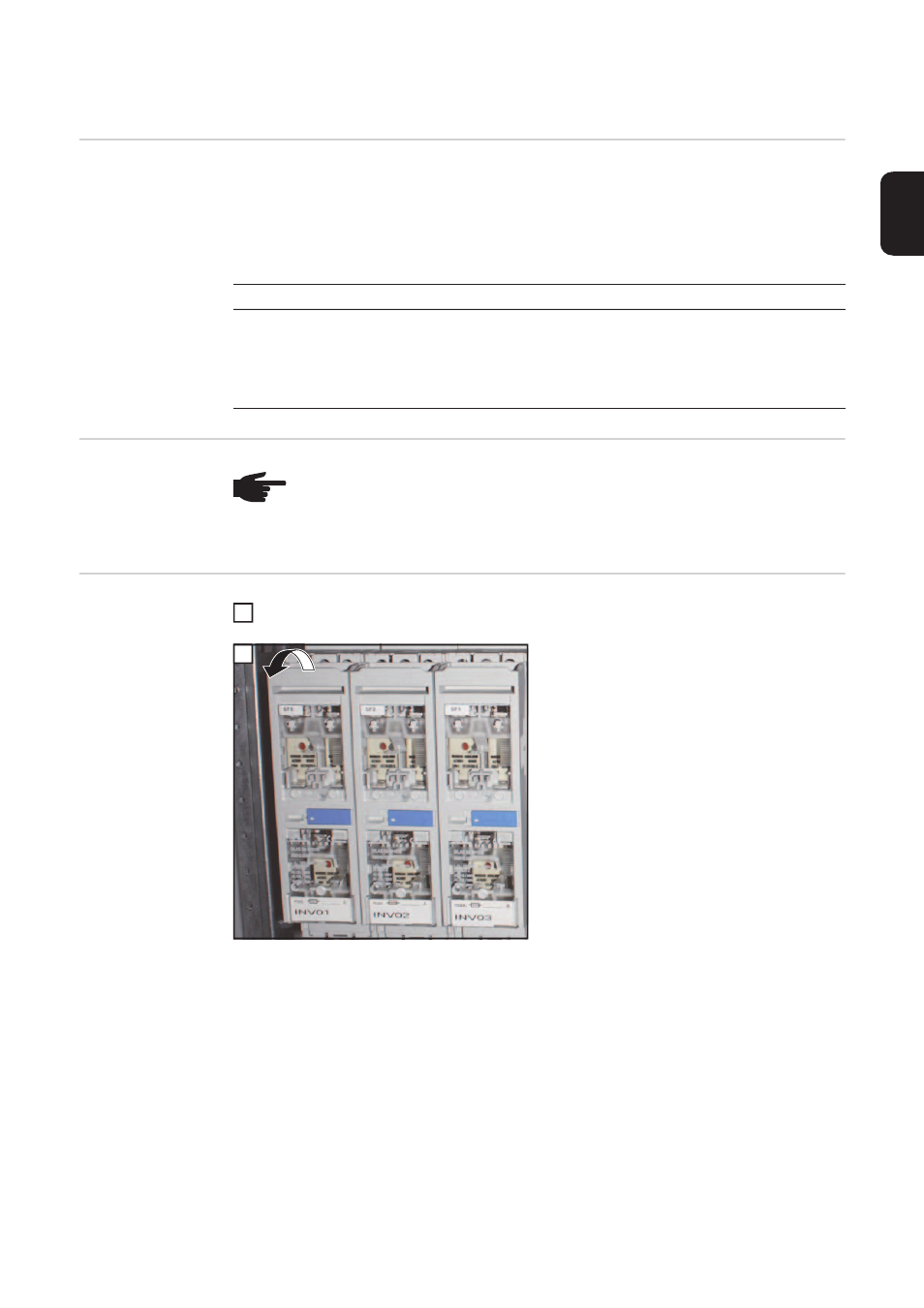

cables Install the AC IN cable from the AC Combiner to the closest inverter
7 - Swivel out the fuse
- Remove the fuse
AC IN cables AC OUT cables
L1 / L2 / L3 / N / PE
External diameter:
max. 28 mm L1 / L2 / L3 / PE
or
L1 / L2 / L3 / N / PE
External diameter:
min. 27 mm - max. 66 mm
NOTE! As a general principle, all work with and on the inverters must be carried
out in line with the installation instructions for the relevant inverter.
Observe safety instructions and warning notices in the installation instructions for
the inverters.
1
1
2
