72
Connecting AC OUT cables
General The installer is personally responsible for selecting and purchasing an appropriate cable
and suitable cable lugs.
The connection of aluminium cables is permitted.
Connecting AC

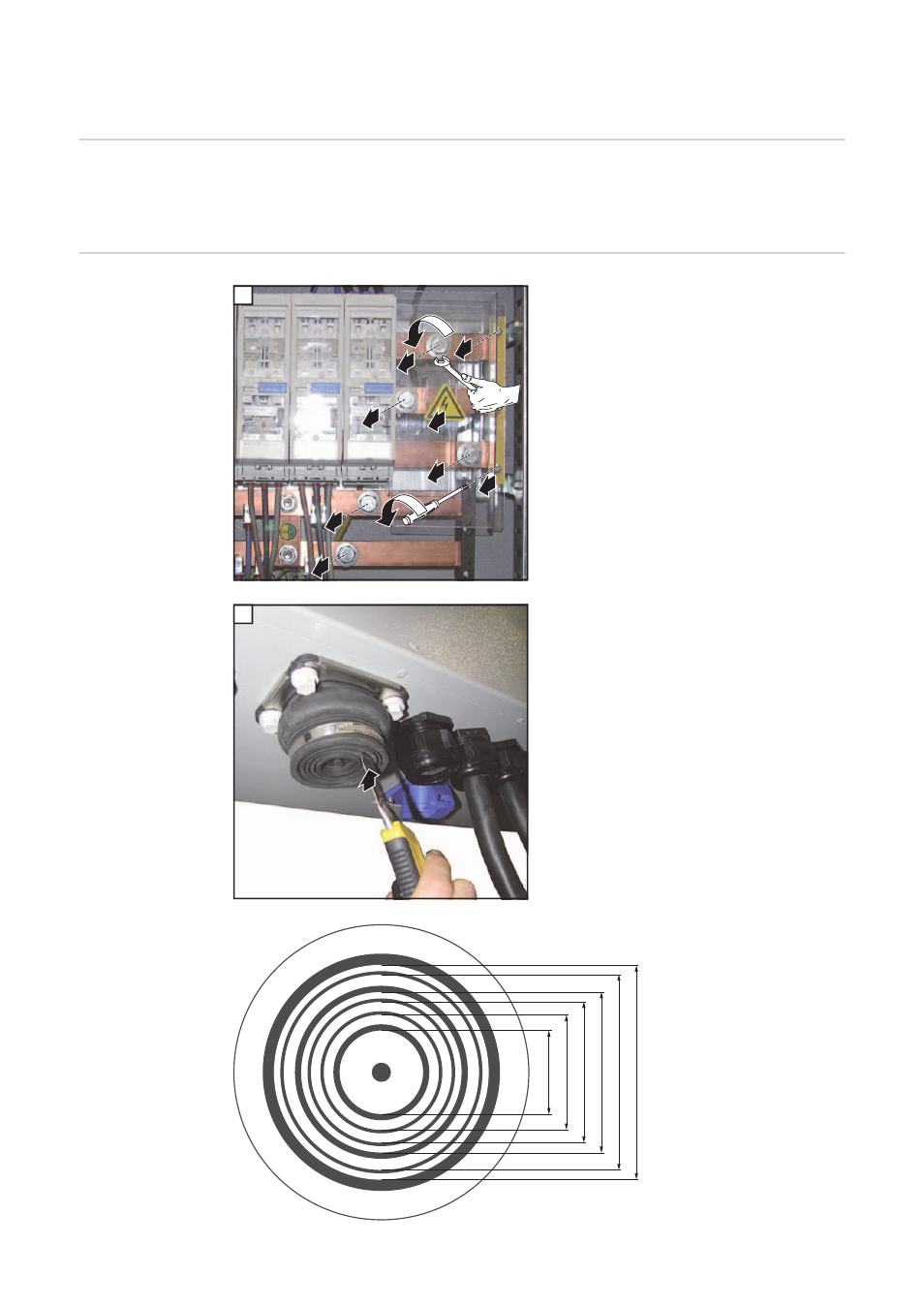

OUT cables 1 - Remove the contact protection
2 x TX25
- Remove the five hexagon bolts from
the copper rails
Size 19 mm
2 - On the underside of the AC OUT cable
outlet, cut out an opening that corres-
ponds to the external diameter of the
cable used
2
1
3
4
6
5
7
9
8
10
1
1
2
28 mm 37 mm 45 mm 52 mm 62 mm 67 mm
