59
EN-US
Product description
Safety
Device descrip-
tion, housing

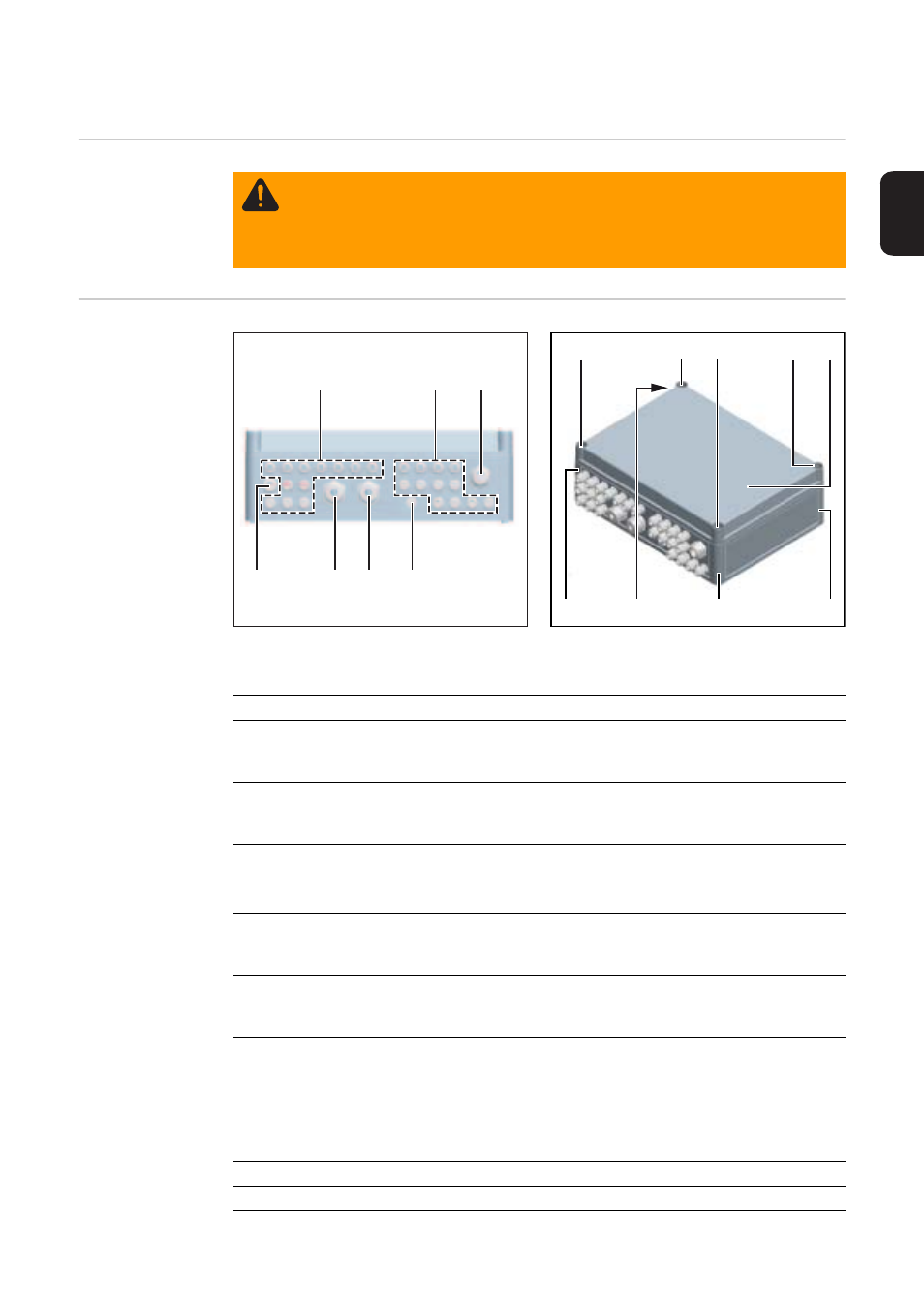

Fronius String Control 100/12 – front view Fronius String Control 100/12 – oblique view from abo-
ve
WARNING! Operating the device incorrectly can cause serious injury and dam-
age. Do not use the functions described until you have thoroughly read and un-
derstood the following documents:
-
these operating instructions
- all operating instructions for system components, especially the safety rules
(1) (2) (3)
(5) (6) (7) (4)
(8) (12) (11) (10) (9)
(16) (15) (14) (13)
Item Description
(1) Cable input for M16 metric screw joints
(for DC cable‘IN’)
Cable diameter 3 - 7 mm
(2) Cable input for M16 metric screw joints
(for DC cable‘IN’)
Cable diameter 3 - 7 mm
(3) Cable input for M25 metric screw joint
(for data communication cable)
(4) Pressure compensation membrane
(5) Cable input for M32 metric screw joint
(for DC cable‘OUT’)
Cable diameter 11 - 21 mm
(6) Cable input for M32 metric screw joint
(for DC cable‘OUT’)
Cable diameter 11 - 21 mm
(7) Cable input for M20 metric screw joint
(for ground cable)
Cable diameter 8 - 13 mm
Only required when using the optional overvoltage protection.
(8) Cover screw
(9) Cover screw
(10) Cover screw
