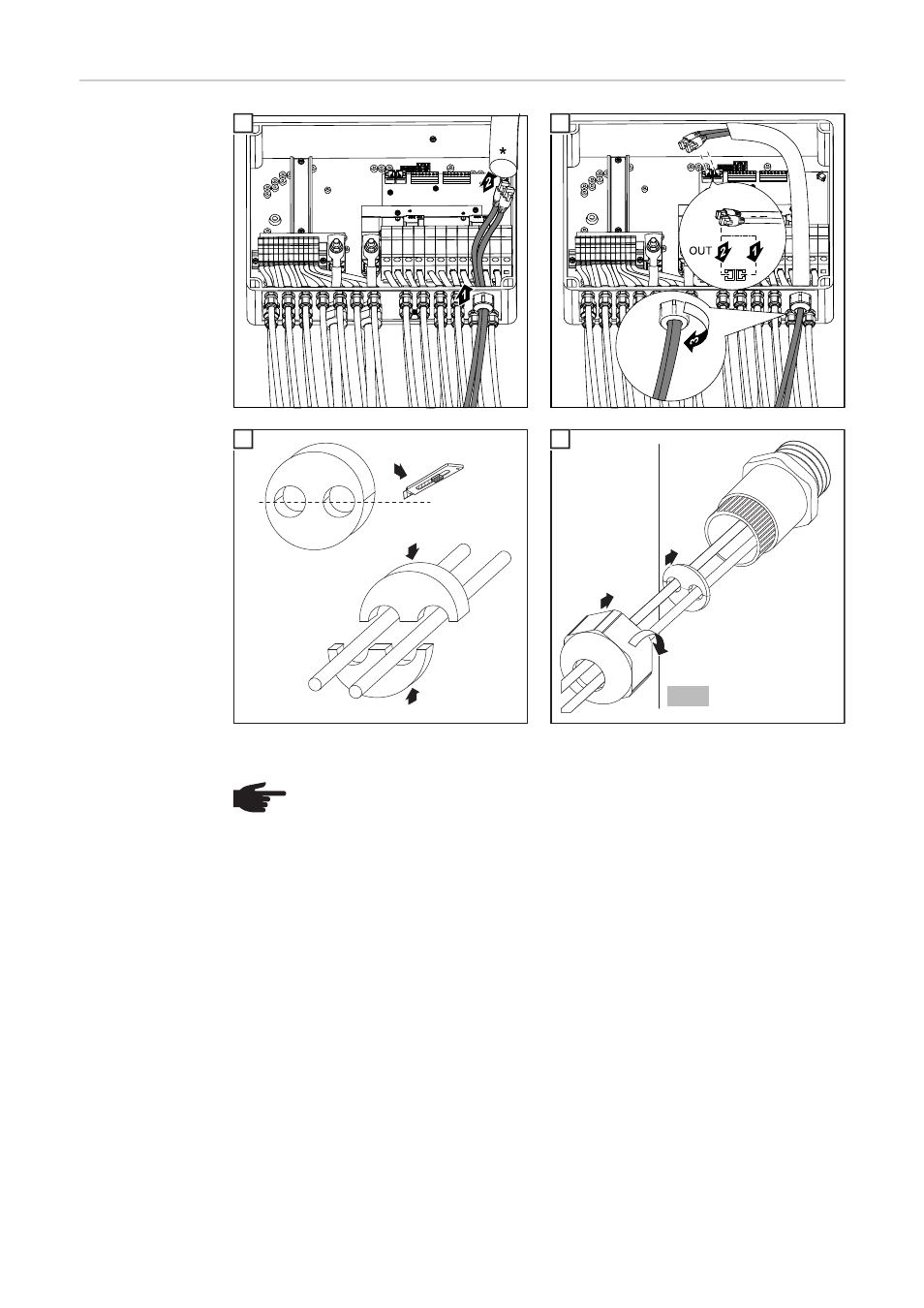

Connecting RJ 45
Data Communica-
tion Cables to the
Fronius String
Control 100/12
* Silicone tube Ø 25 x 510 mm
1 2
1
3
2
DA
TCOM IN
DA
TCOM OUT
3
5 Nm
2
1
3
4
NOTE! Procedure when only 1 data communication cable is being connected to
the Fronius String Control 100/12 (e.g., when the Fronius String Control 100/12
is the last component in a Solar Net):
-
Insert the termination plug in the free RJ 45 connection. The termination plug
is part of the scope of supply for every Fronius Datalogger.
- Insert the plastic bolt in the free opening of the rubber insert (included in the
scope of supply for the Fronius String Control 100/12).
