77
EN-US
Connecting Multi-
core Data Com-
munication Ca-
bles to the
Fronius String
Control 100/12 When using multi-core data communication cables with a diameter up to a max. of 6 mm,
both cables are fed through the rubber insert and through the opening intended for this pur-
pose like with the RJ 45 cable.
The following work steps are for data communication cables with a maximum diameter of
up to 6 mm.

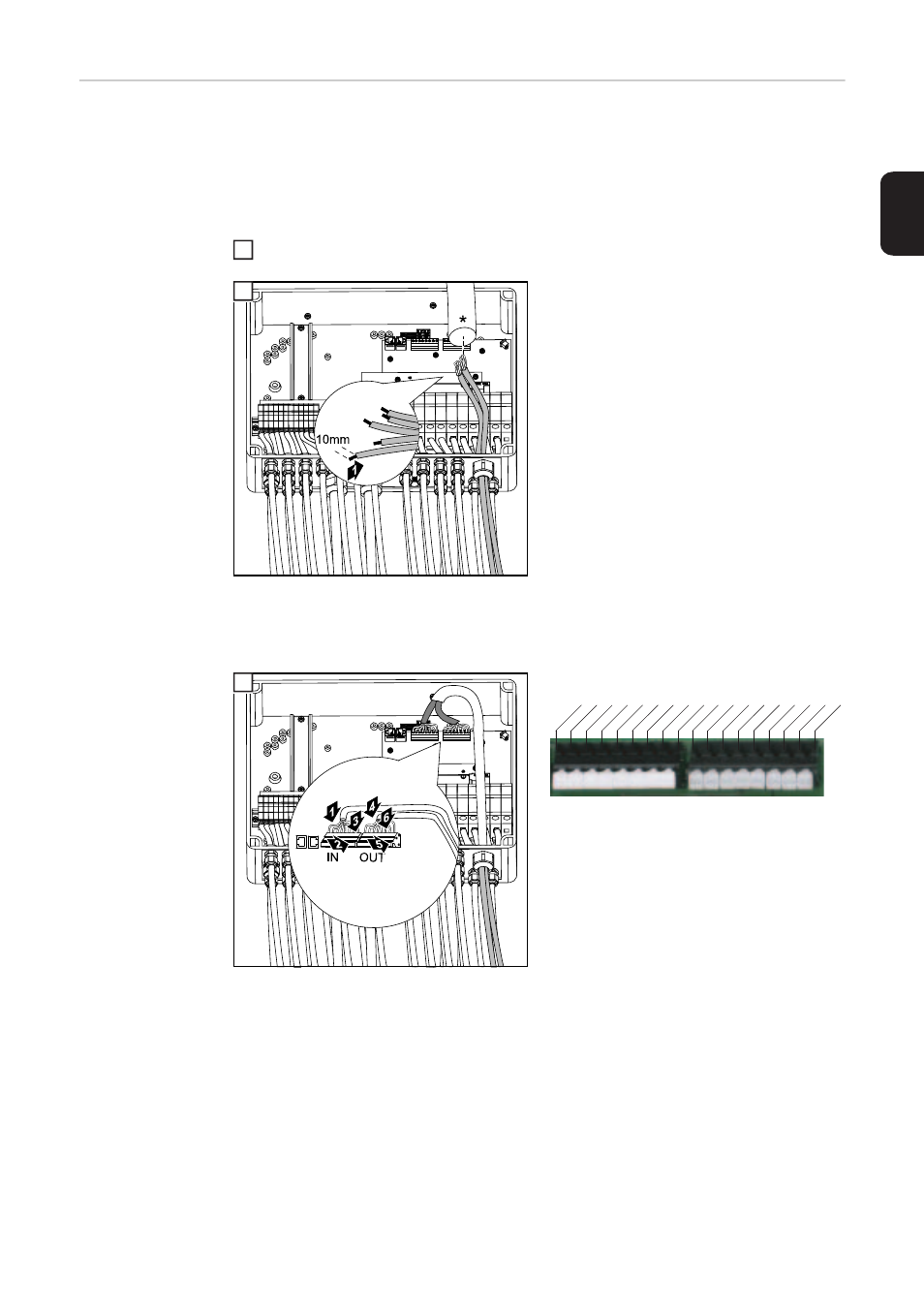

Strip approx. 50 - 70 mm of insulation from the end of the data communication cable
* Silicone tube Ø 25 x 510 mm
IMPORTANT! You must know the assignment of each individual wire when connecting the
wires to the terminals.
1
2
Terminal assignments:
3
IN OUT
+12 VGNDTX-
RX-RX+TX+GND
+12 V +12 VGND
RX-TX-TX+ RX+GND
+12 V
