Setting the Address
Safety
General Solar Net allows up to 200 Fronius String Control 100/12s to operate simultaneously. The
individual Fronius String Controls are differentiated by the allocation of addresses.

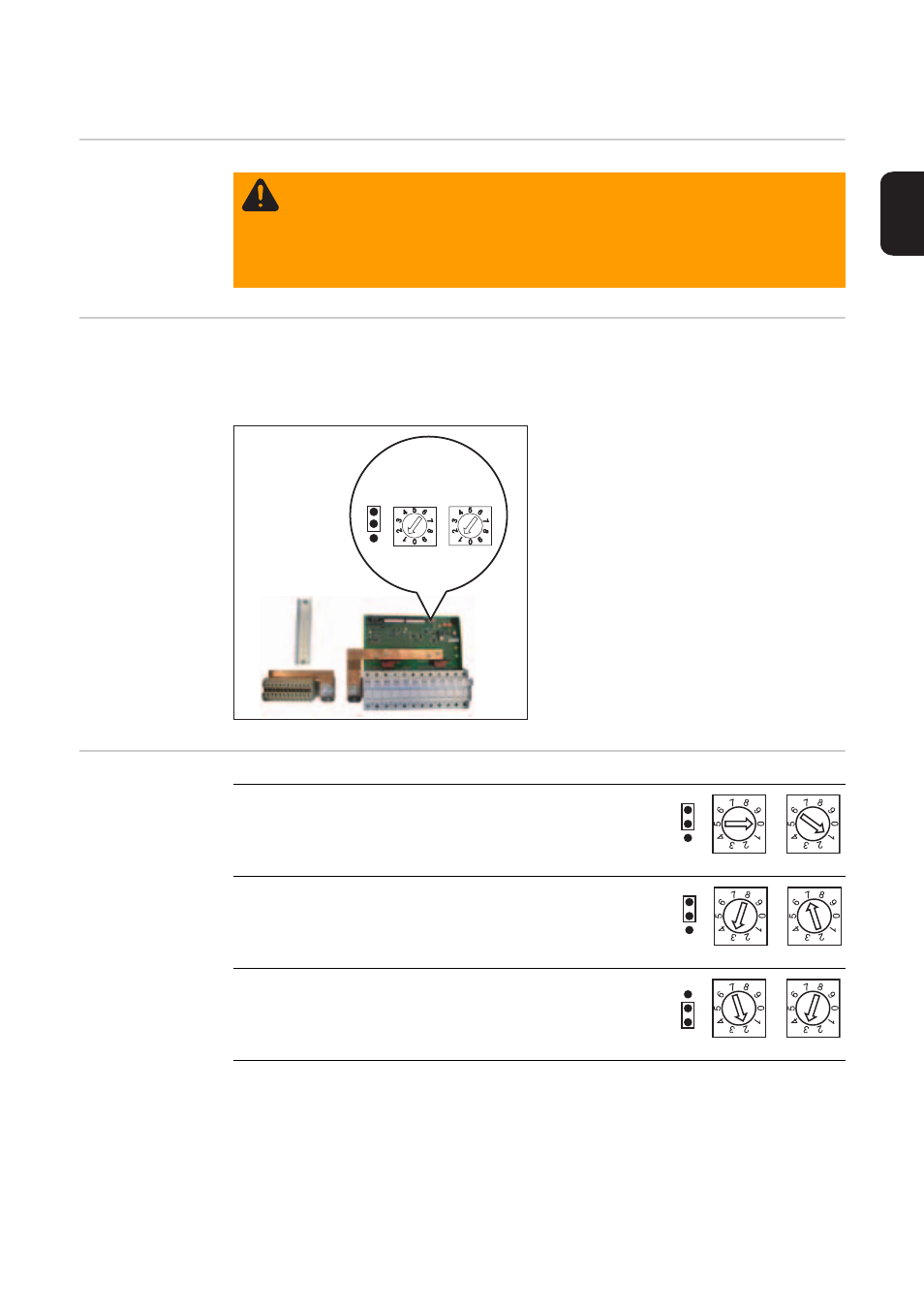

Addresses from 0 - 199 are set using the address switch:
(1) Jumper for the hundreds' place
(2) Setting dial for the tens' place
(3) Setting dial for the ones' place
Setting the Ad-
dress - Examples
WARNING! An electric shock can be fatal. Danger from DC voltage from solar
modules.
-
Make sure that the input and output sides in front of the device are not
charged before connecting anything.
- Any and all connections should only be carried out by qualified electricians.
- Follow the safety rules in these operating instructions.
(2) (3)
1XX
0XX
(1)
Fronius String Control 100/12
No. 1
Fronius String Control 100/12
No. 37
Fronius String Control 100/12
No. 123
0XX
1XX
0 1 0
0XX
1XX
3 7 0
0XX
1XX
2 3 1
