HEIDENHAIN TNC 407 (243 020) Technical Manual - Handbuch (Seite 108)

11/96

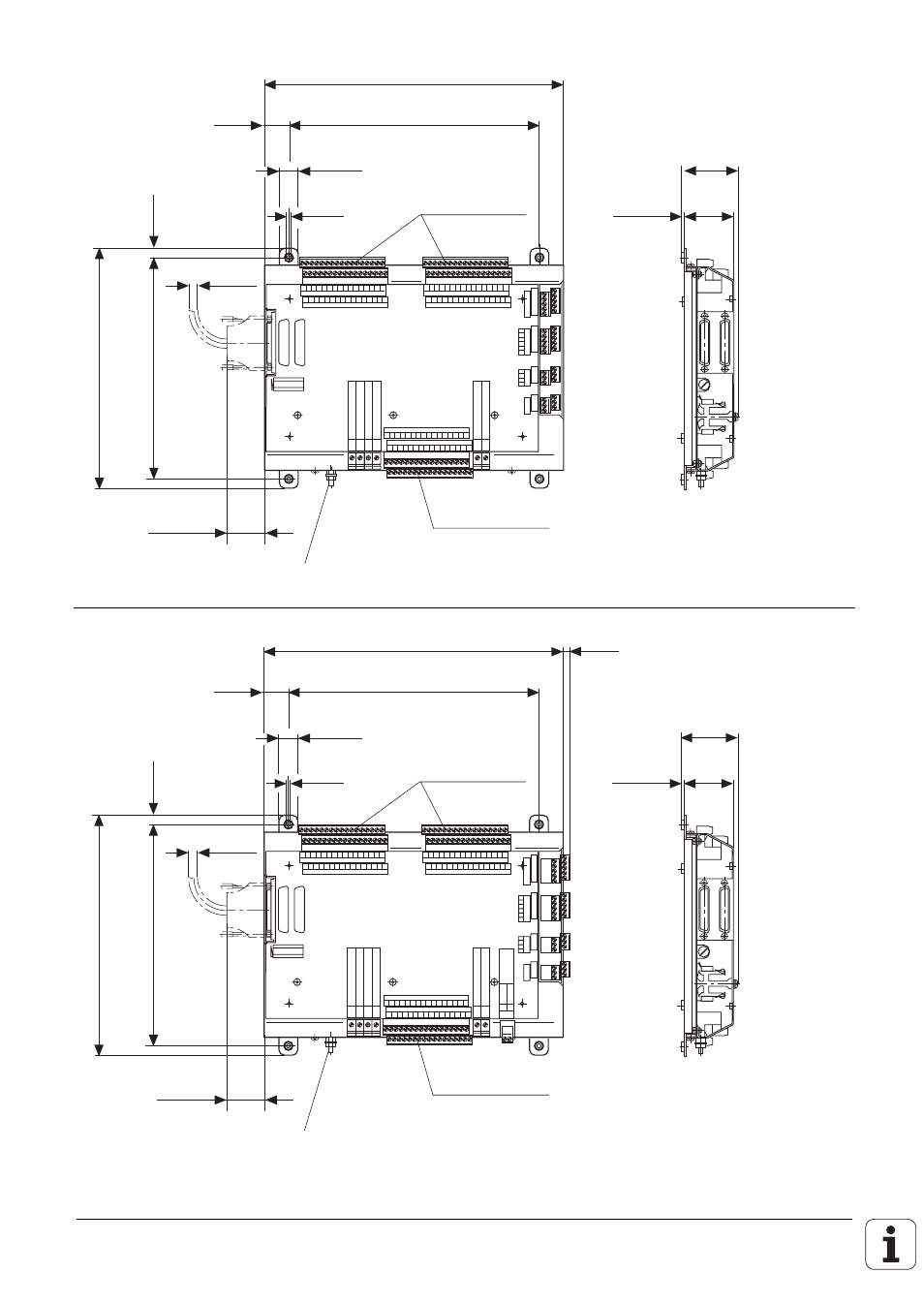

TNC 407/TNC 415/TNC 425 16 Anschlußmaße 3-79
PL 410
47.5
1.87"
23.5
.93"
18
±
0.5
.7
±
.02"
3.6
.14"
Masseanschluß M5
GROUND CONNECTION M5
235
±
0.2
9.252
±
.008"
282
11.1"
1
±
0.5
.04+.02"
52.5
2.07"
33+2
1.3"+.08"
9
.35"
228
8.98"
210
±
0.2
8.268
±
.008"
ø9.3
DIA.37"
PL-Eingänge
PL INPUTS
PL-Ausgänge
PL OUTPUTS
PL 410 B
47.5
1.87"
23.5
.93"
18
±
0.5
.7
±
.02"
3.6
.14"
Masseanschluß M5
GROUND CONNECTION M5
235
±
0.2
9.252
±
.008"
282
11.1"
1
±
0.5
.04+.02"
52.5
2.07"
18
±
0.5
.7
±
.02"
9
.35"
228
8.98"
210
±
0.2
8.268
±
.008"
ø9.3
DIA.37"
PL-Eingänge
PL INPUTS
PL-Ausgänge
PL OUTPUTS
8
.315"
